Hb Electrophoresis System with Power Supply

Short Description:

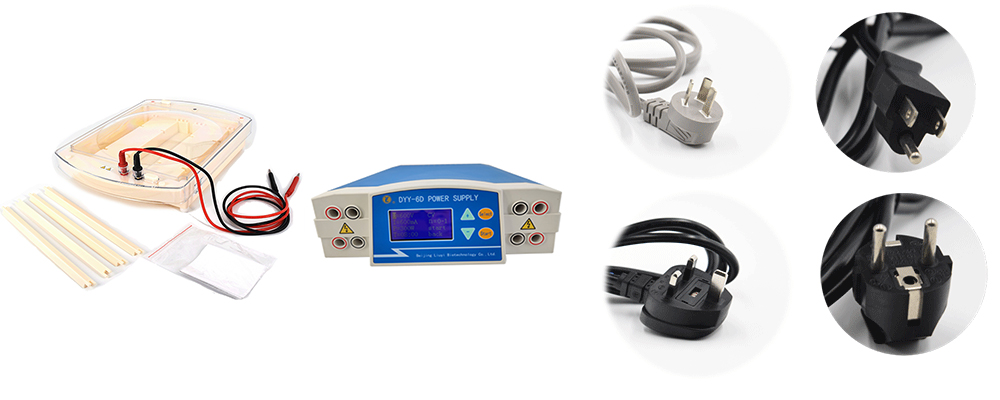

YONGQIANG Rapid Clinic Protein Electrophoresis Testing System consists of  one unit of DYCP-38C and a set of electrophoresis power supply DYY-6D, which is for paper electrophoresis, cellulose acetate membrane electrophoresis and slide electrophoresis. It is a cost-effective system for hemoglobin electrophoresis, which is a blood test that measures different types of a protein called hemoglobin in your red blood cells. Our customers prefer this system as their testing system for thalassemia research or diagnoses project. It is economical and easy to operate.

Product Detail

Product Tags


Technical Specification For DYCP-38C
Dimension (LxWxH) 370×270×110mm
Gel Size (LxW) 70 or 90x250mm (dual-row)
Buffer Volume 1000 ml
Weight 2.0kg
Technical Specification for DYY-6D
Dimension (LxWxH) 246 x 360 x 80mm
Output Voltage 6-600V
Output Current 4-600mA
Output Power 1-300W
Output Terminal 4 pairs in parallel
Weight 3.2kg

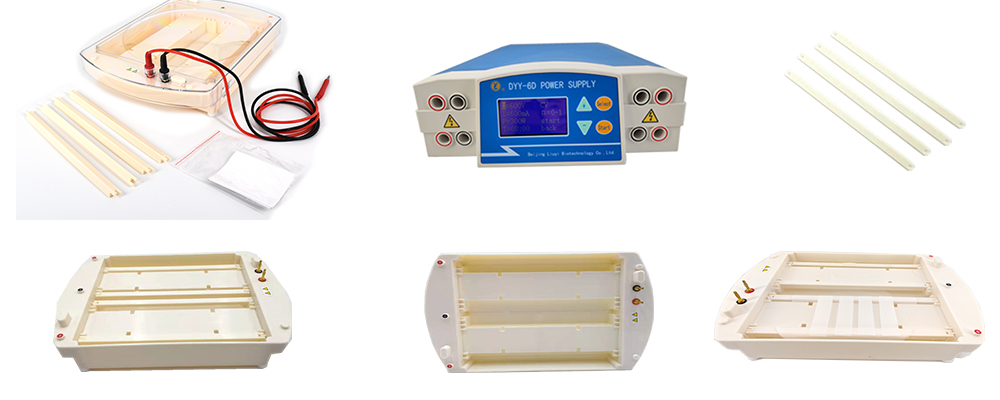

The DYCP-38C consists of lid, main tank body, leads, adjusting sticks. Its adjusting sticks for different size of paper electrophoresis or cellulose acetate membrane (CAM) electrophoresis experiments. DYCP-38C has one cathode and two anodes, and can run two lines of paper electrophoresis or cellulose acetate membrane (CAM) at the same time. The main body is molded one, beautiful appearance and no leakage phenomenon.It has three pieces of electrodes of platinum wire. The electrodes are made by pure platinum(the purity quotient of the noble metal ≥99.95%) which have the features of corrosion resistance of electroanalysis and withstand high temperature.

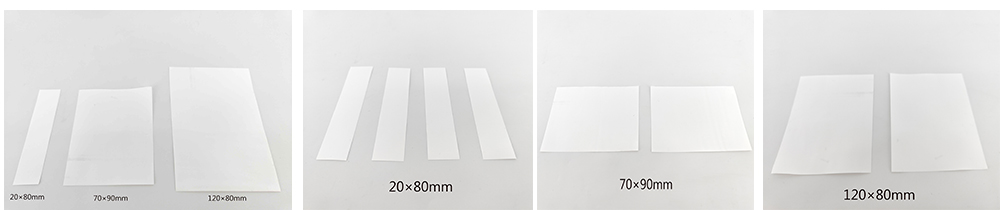

As the necessary product for DYCP-38C, we also supply cellulose acetate membrane. We have regular specification as well as the customized specification as the customers’ requirements.

Description Specification Packing
Soft cellulose acetate membrane

(Easy to wet and operate)

70 × 90mm 50pcs/case
20 × 80mm 50pcs/case
120 × 80mm 50pcs/case

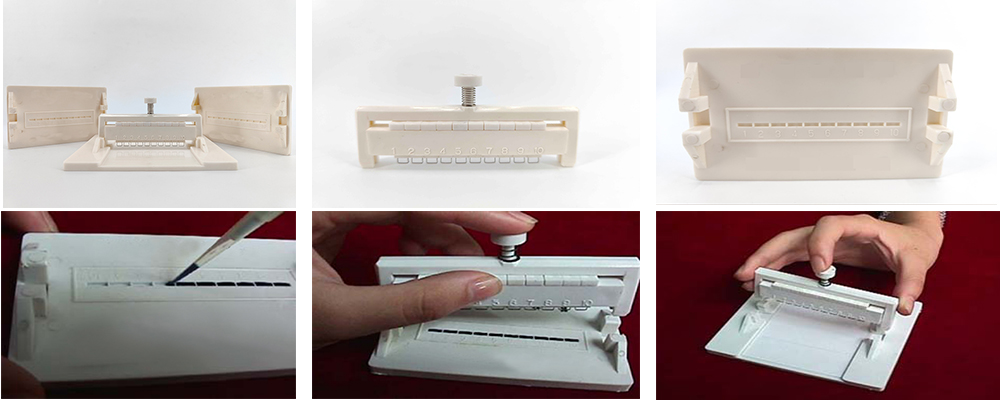

We also recommend our Superior Sample Loading Tool for loading sample for cellulose acetate electrophoresis(CAE), paper electrophoresis and other gel electrophoresis. It can load 10 samples at one time and improves your speed to load samples. This superior sample loading tool contains a locating plate, two sample plates and a fixed volume dispenser(Pipettor).



The YONGQIANG rapid clinic protein electrophoresis testing system is designed for medical institutions at basic level for cellulose acetate membrane electrophoresis to test and analyze serum protein, hemoglobin, globulin, lipoprotein, glycoprotein, Alpha-fetoprotein, bacteriolytic, and enzyme to research the changing situation of proteins.

The tester can clinically diagnose the diseases like hypoproteinemia, nephrotic syndrome, diffuse liver damage, and protein deficiency and so on through testing the changing of proteins.



DYCP-38C is for paper electrophoresis, cellulose acetate membrane electrophoresis and slide electrophoresis. It can be used for hospital clinical examination and university teaching and research. It has following features:
• Delicate appearance;
• The main body is molded, no leakage phenomenon;
• It has three pieces of electrodes of platinum wire;
• The adjusting sticks for different sizes of paper electrophoresis or cellulose acetate membrane (CAM) electrophoresis experiments.

DYY-6D fits for DNA, RNA, Protein electrophoresis. With micro-computer processor intelligent control, it’s able to adjust parameters in real time under the working condition. The LCD displays voltage, electric current, timing time.With automatic memory function, it is able to store the operation parameters. It has protection and warning function for unloaded, overload, sudden-load change. It has following features:
• Compact and elegant appearance design;
• Controlled by micro-computer; LCD display;
• Parameters can be adjusted finely during the running;
• Constant voltage, constant current, timer;
• Up to 10 different programs. Each with 3 steps;
• Program continues running automatically after power failure;
• Small current output will continue when all the set-time elapsed;
• Oxygen anion produced during the running will improve the atmosphere of the lab.
