UV Transilluminator WD-9403C

Short Description:

WD-9403C is a black-box type UV analyzer which applies to observe, take photos for nucleic acid electrophoresis. It has three kinds of wavelengths to choose. The transmission wavelength is 254nm and 365nm, and the reflection wavelength is 302nm. It has a dark chamber, no need darkroom. Its drawer-type light box makes it convenient for use.


Product Detail

Product Tags

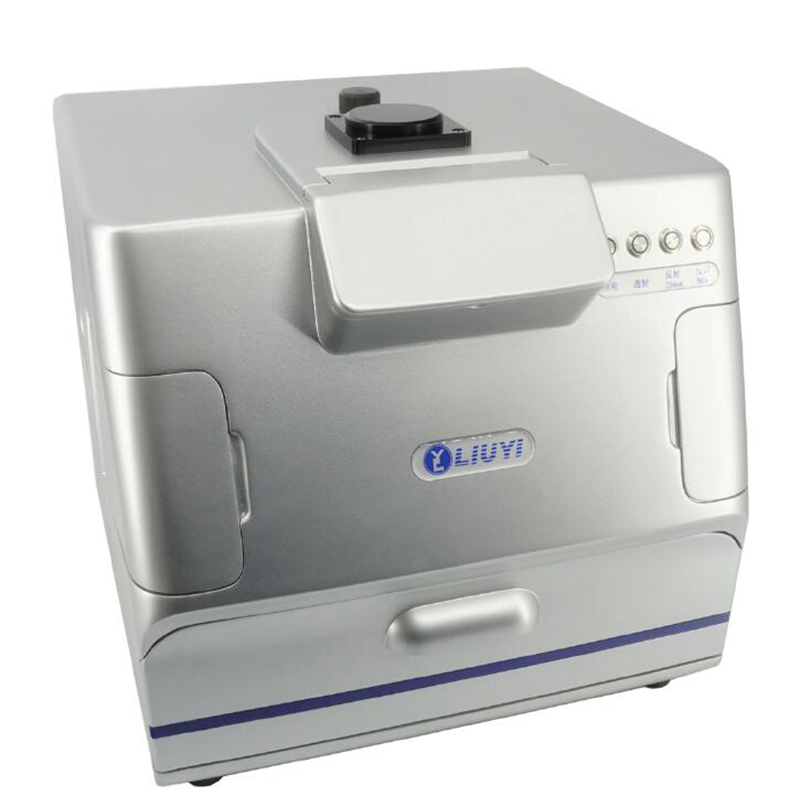

UV Transilluminator WD-9403C (2)

Specification

Dimension 425×430×380mm
Transmission UV Wavelength 302nm
Reflection UV Wavelength 254nm and 365nm
Transmission Area 200×200mm
UV Lamp Power 8W for 302nm lamp 6W for 254nm and 365nm lamp
Weight 20.00kg

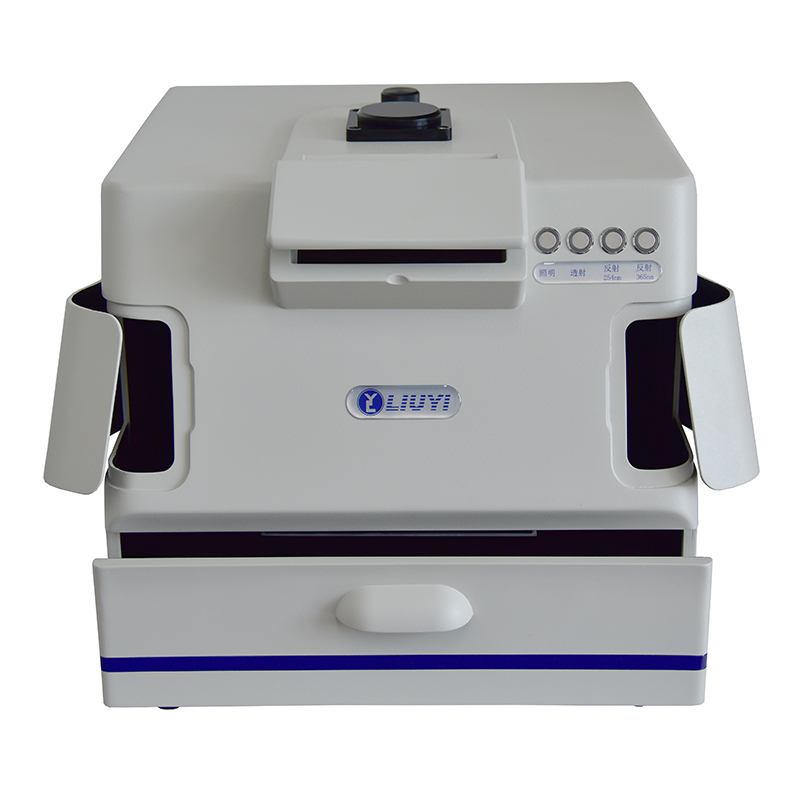

UV Transilluminator WD-9403C (3)

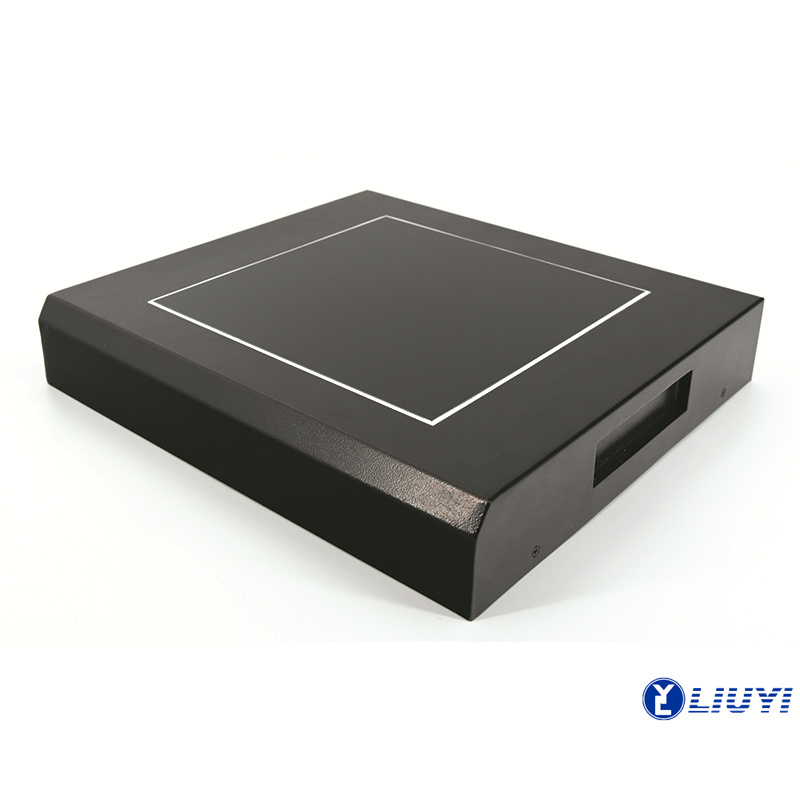

UV-Transilluminator-WD-9403C-6

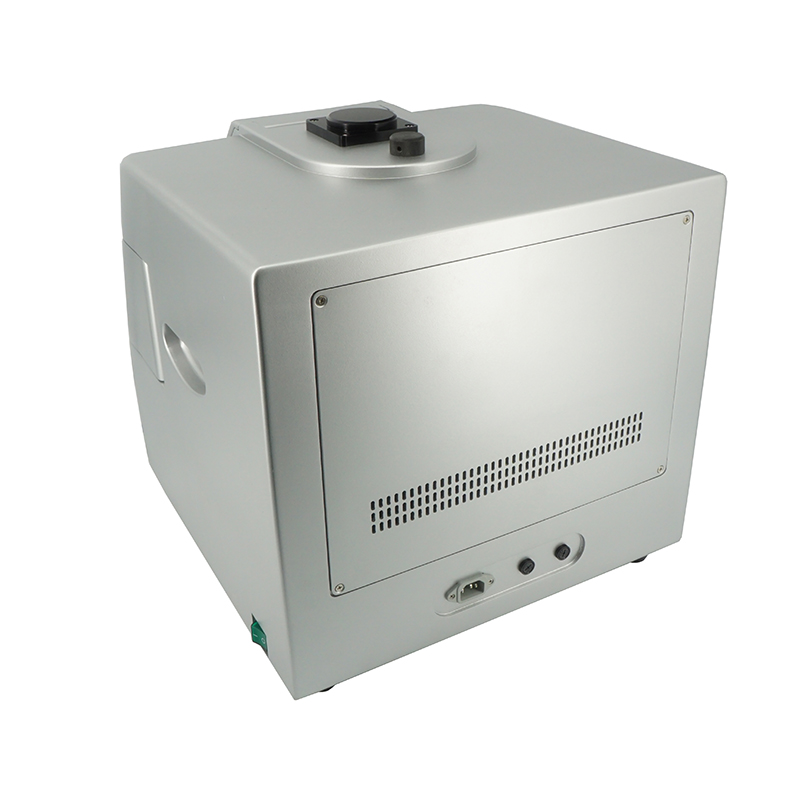

UV Transilluminator WD-9403C (4)

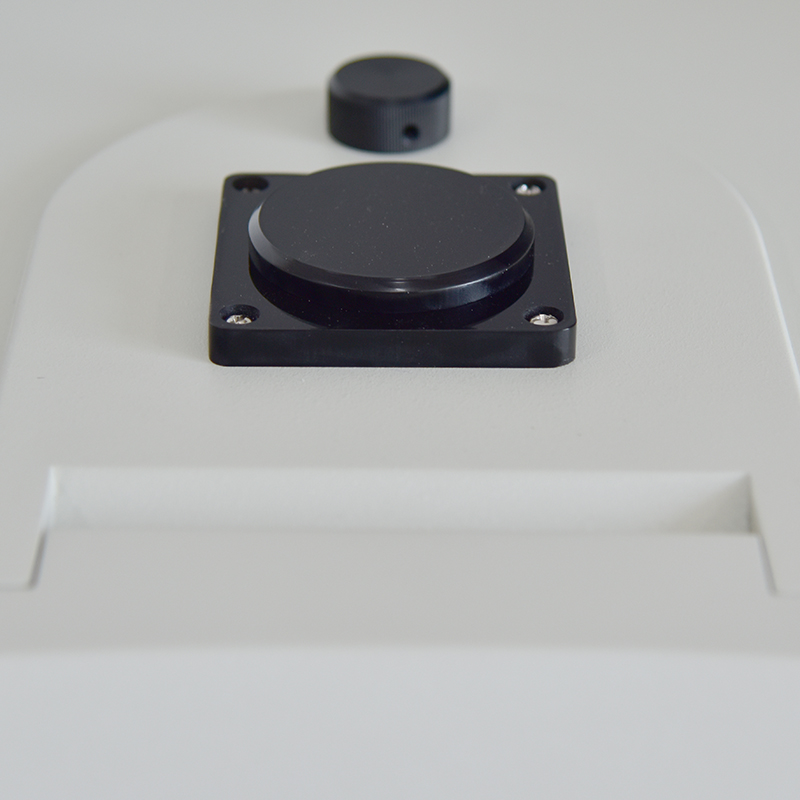

UV Transilluminator WD-9403C (7)

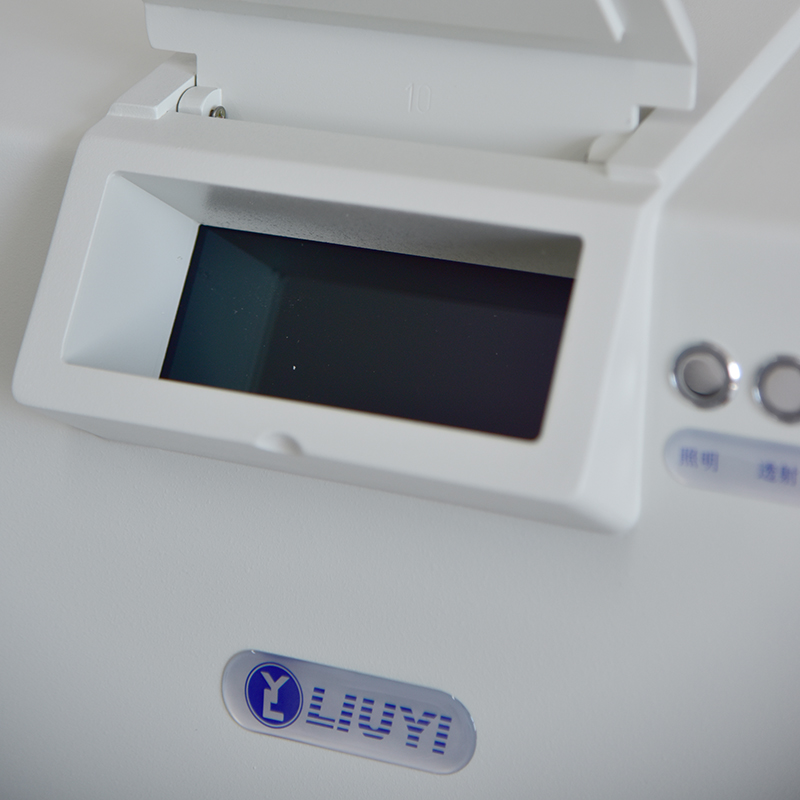

UV Transilluminator WD-9403C (5)

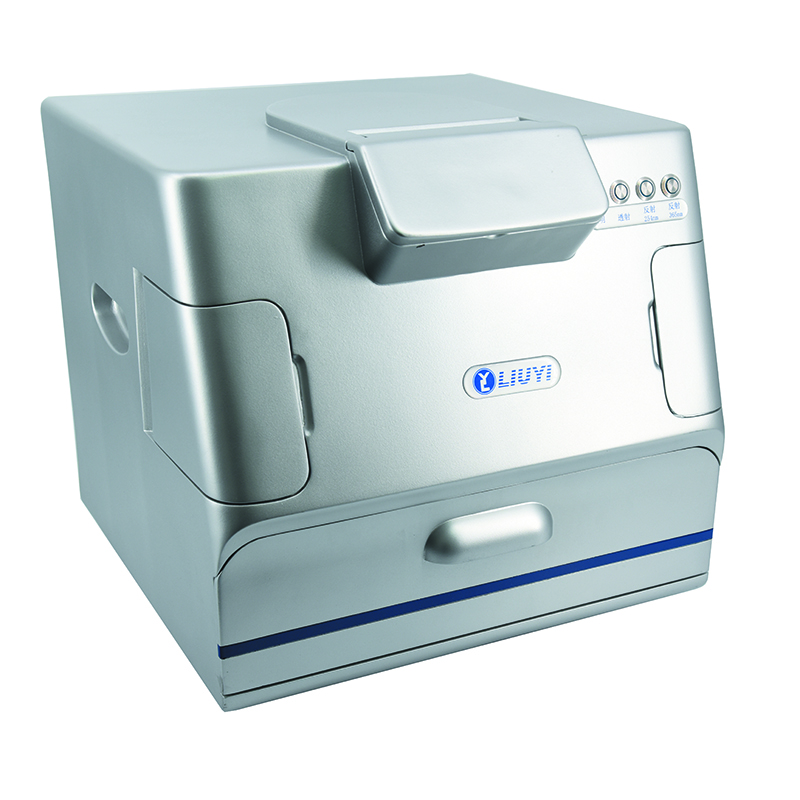

UV Transilluminator WD-9403C (1)

Description

WD-9403C UV Transilluminator is the necessary instrument for observing, photographing the electrophoresis gel. It is a basic device with ultraviolet light source for visualizing and photographing the gels stained with fluorescent dyes like ethidium bromide, and with white light source for visualizing and photographing the gels stained with dyes. It is suitable for lab of university or hospital, scientific research institutions engaged in the research of biological engineering science, agriculture and forestry science, etc.It has strong and durable appearance. It is strong and compact with a viewing window. The glass plate of the viewing window is ultra-violet ray intercepting glass, it can protect your eyes. On the top of the apparatus, there is a cylinder for the connector and the filter that are for the digital camera to take the photos. There are some holes in the bottom of the apparatus, which are used for heat elimination. At both top sideling sides of the viewing cabinet, there are built-in light tubes and UV reflected light tubes. The UV reflected light tubes allow you to project either longwave UV at 365nm or shortwave UV at 254nm depending on your needs. It has a dark room and it is designed to minimize UV radiation hazards to the user, it can be used in a daylight room. The application of the electronic ballast in the apparatus makes the apparatus light. The lighting tube will start immediately when you turn on the main power switch without any stroboscopic phenomenon.

Application

Apply to observe, take photos for nucleic acid electrophoresis.

Feature

• Dark chamber design, no need darkroom, can be used in all-weather;

• Safety for the user;

• Drawer-mode light box, convenient for use;

• Strong and durable;

• 3 different wavelengths of UV light available;

• With illumination and camera bracket inside(Camera system is optional).
