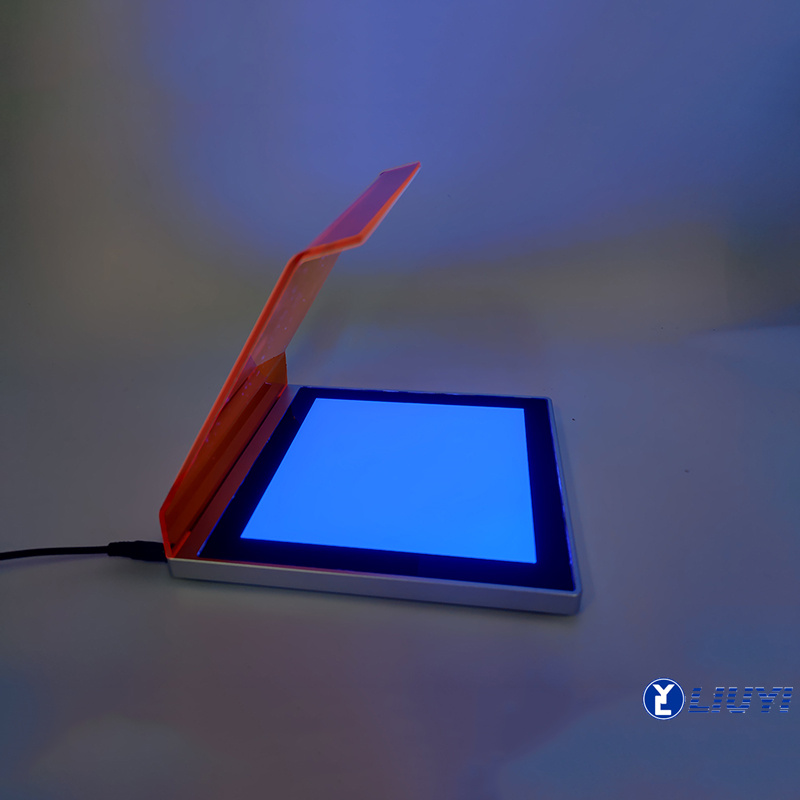

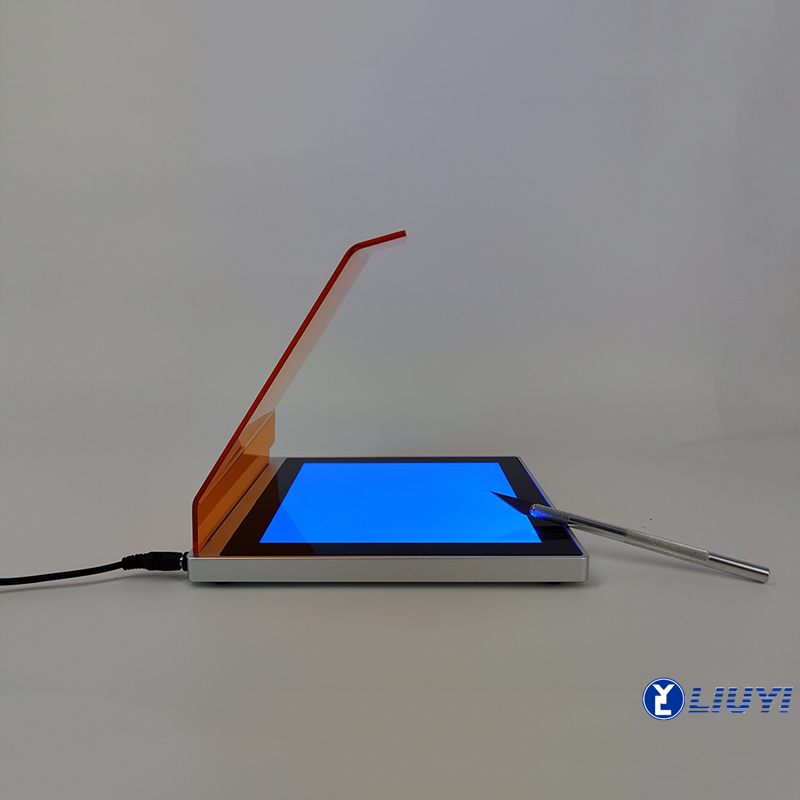

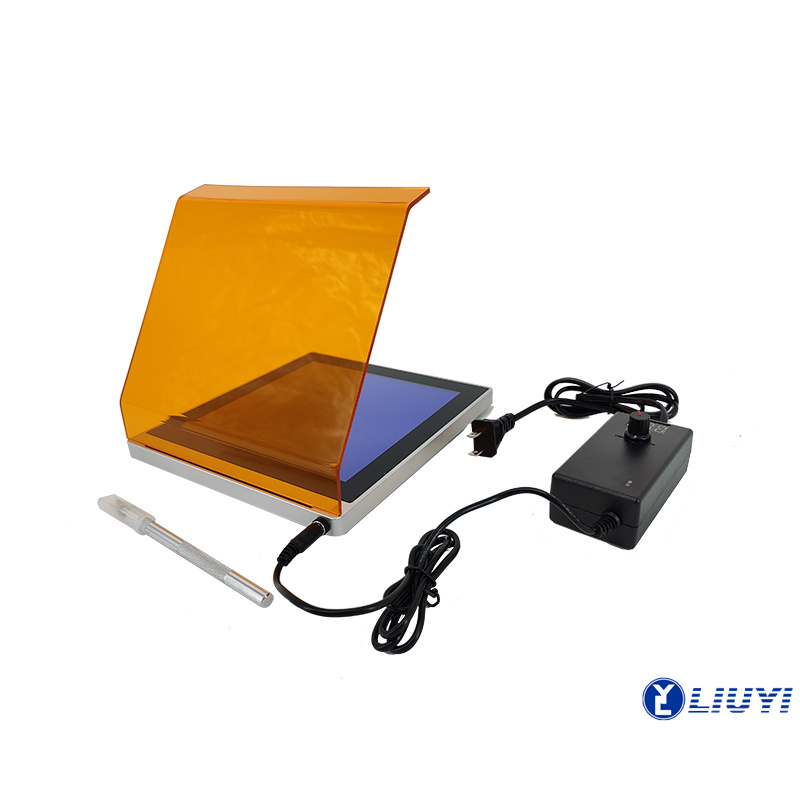

Blue LED Transilluminator WD-9403X
Specifications
| Dimension (LxWxH) | 190x205x150mm |
| Filter Size (LxWxH) | 180X205X220mm |
| Viewing Range (LxW) | 150x150mm |
| Max Cutting Gel Size | 150x150mm |
| Uniformity | ≥90% |

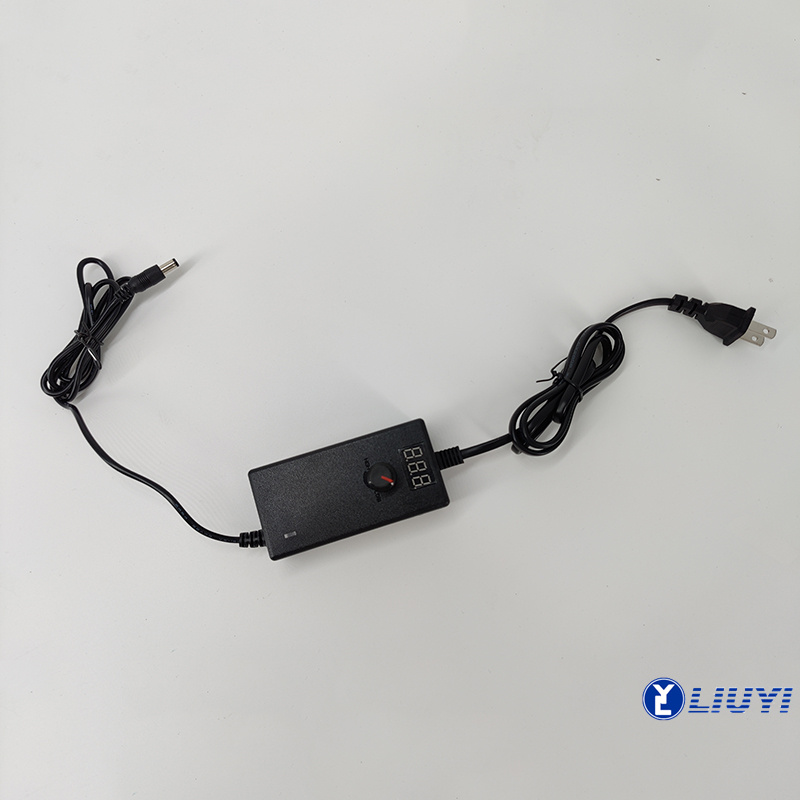

| Brightness Adjustment | Knob Stepless Adjustment |
| LED Lifetime (hours) | ≥30000hs |
| Emission Maxima (nm) | 470nm |
| Max Power | 20W |
| Input Voltage | AC100-240V |
Description
It is used for light source instrument for the observation and analysis of nucleic acids, proteins and other substances in the life science research field. The blue light transilluminator is designed in accordance with ergonomics, the opening and angle are comfortable. LED blue light source design makes samples and operators safer, and more on the observation of gel cutting. Small size and space saving, it is good for observation and gel cutting.
Feature
1. Uniformity:≥90%，uniform excitation, no flicker when taking pictures, clearer bands.
2. Easy to dissipate heat, it works stably for long time.
3. Lighter, ultra-thin and the thickness is about 15mm.
4. Safer: The blue light filter can effectively filter the illuminance of the blue light, without goggles and masks, no damage to the human body, and easier experiments.

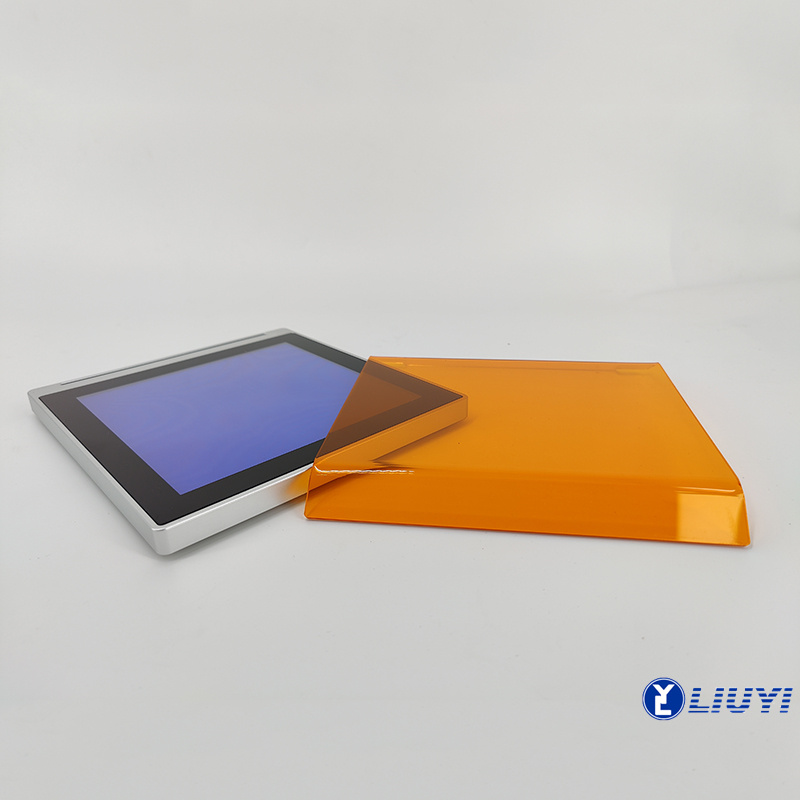

5. Easy to clean: the blue light filter and the cabinet are designed separately for easy cleaning.
6. Adjustable brightness for easy observation.
