Cellulose Acetate Film Electrophoresis Cell DYCP-38C

Short Description:

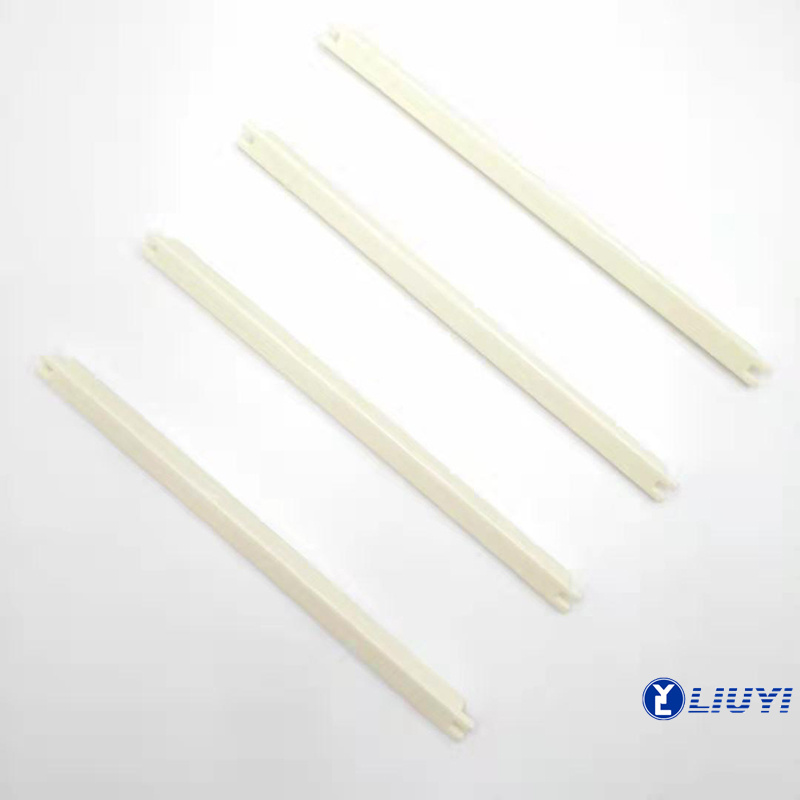

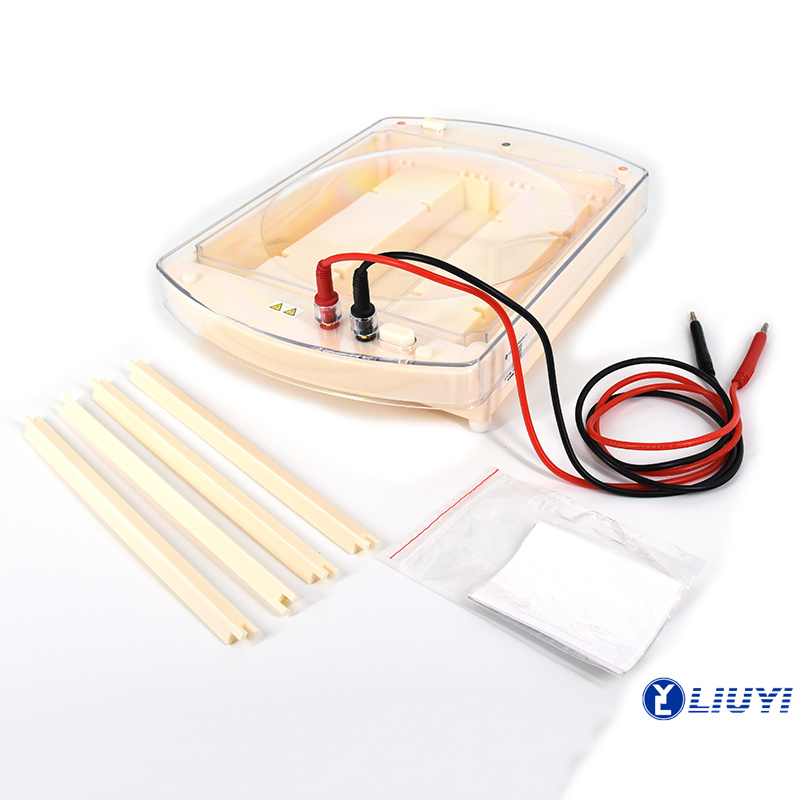

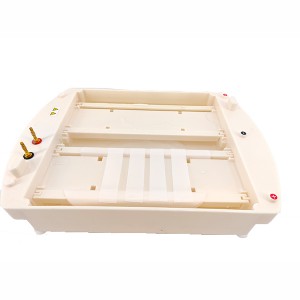

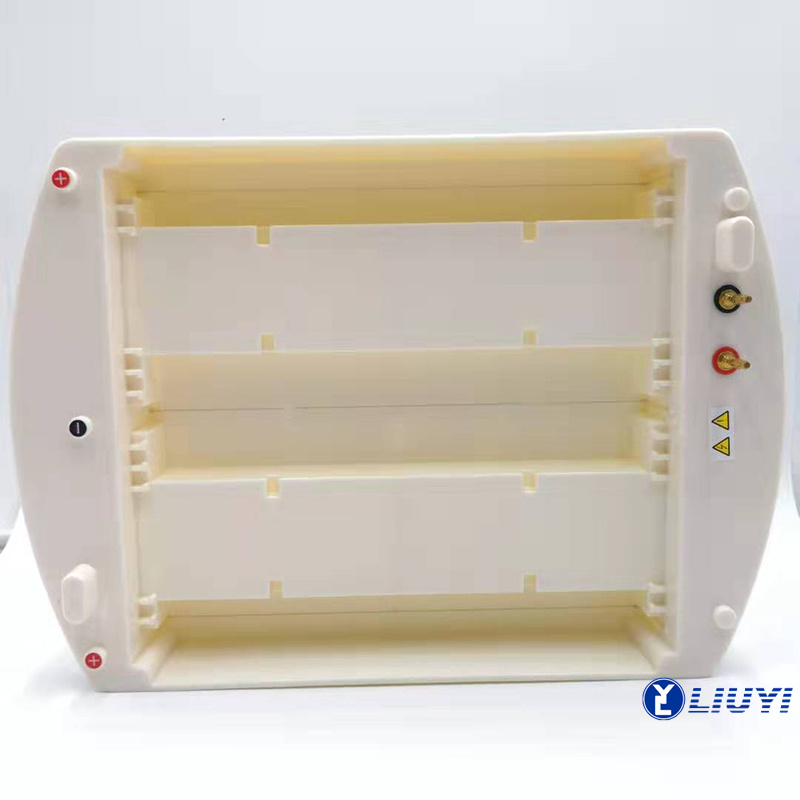

DYCP-38C is used for paper electrophoresis, cellulose acetate membrane electrophoresis and slide electrophoresis. It consists of lid, main tank body, leads, adjusting sticks. Its adjusting sticks for different size of paper electrophoresis or cellulose acetate membrane (CAM) electrophoresis experiments. DYCP-38C has one cathode and two anodes, and can run two lines of paper electrophoresis or cellulose acetate membrane (CAM) at the same time. The main body is moulded one, beautiful appearance and no leakage phenomenon.It has three pieces of electrodes of platinum wire. The electrodes are made by pure platinum(the purity quotient of the noble metal ≥99.95%) which have the features of corrosion resistance of electroanalysis and withstand high temperature. The function of electric conduction is very good.The continuous working time of 38C ≥ 24 hours.


Product Detail

Product Tags

Specification

Dimension (LxWxH) 370 X 270 X 110 mm
Buffer Volume 1000 ml
Gel Size (LxW) 70 or 90x250mm (dual-row)
Weight 2.0kg
Cellulose-Acetate-Film-Electrophoresis-Cell-DYCP-38C-1
Cellulose-Acetate-Film-Electrophoresis-Cell-DYCP-38C-2
38C-1
38C-2
2-1
38C-3
Cellulose-Acetate-Film-Electrophoresis-Cell-DYCP-38C-3

Description

For paper electrophoresis, cellulose acetate membrane electrophoresis and slide electrophoresis. It can be used for hospital clinical examination and university teaching and research.

Feature

• 3 pieces of platinum electrodes double the sample quantities;

• Keep balance with adjustable legs;

• Adjustable sticks adapt to different carriers;

• Transparent cover in unique shape slows down the rate of evaporation and easy to observe;

• The injection mould lid made of high quality polycarbonate.
