SDS-PAGE Gel Electrophoresis System

Short Description:

Electrophoresis is a laboratory technique that uses electrical current to separate DNA, RNA or proteins based on their physical properties such as size and charge. DYCZ-24DN is a mini vertical electrophoresis cell that can be used for SDS-PAGE gel electrophoresis. SDS-PAGE, the full name is sodium dodecyl sulfate–polyacrylamide gel electrophoresis, which is commonly used as a method to separate proteins with molecular masses between 5 and 250 kDa. It is a technique widely used in biochemistry, molecular biology and biotechnology to separate proteins based on their molecular weight.


Product Detail

Product Tags

Specification

Technical Specification For DYCZ-24DN
Dimension (LxWxH) 140×100×150mm
Gel Size (LxW) 75×83mm
Comb 10 wells and 15 wells
Comb Thickness 1.0mm and 1.5mmStandard0.75mm (Optional)
Number of Samples 20-30
Buffer Volume 400 ml
Weight 1.0kg
Technical Specification for DYY-6C
Dimension (LxWxH) 315 x 290x 128mm
Output Voltage 6-600V
Output Current 4-400mA
Output Power 240W
Output Terminal 4 pairs in parallel
Weight 5.0kg
详情页-1

Description

DYCZ–24DN is a mini dual vertical electrophoresis cell used for protein electrophoresis, which is a delicate, simple and easy to operate system. It is manufactured from high polycarbonate with platinum electrodes. The system contains main tank body (gel casting stand), lid with leads, external tank (buffer tank) and gel casting device. Accessories: glass plate, comb, thicker glass board (∮=5 mm) for running one gel, special wedge frame. It equips 10 and 15 wells combs with 1.0mm and 1.5mm thickness, and it also provides optional comb with 0.75mm thickness and notched glass plate sticked with regula (0.75 mm) for you choose. Its seamless and injection-molded transparent base prevents leakage and breakage. It can save buffer solution, base running buffer solution is about 170 ml; only 170 ml of buffer solution can complete the experiment. This system is very safe for the users. Its power source will be switched off when user opens the lid. The special lid design avoids making mistakes.

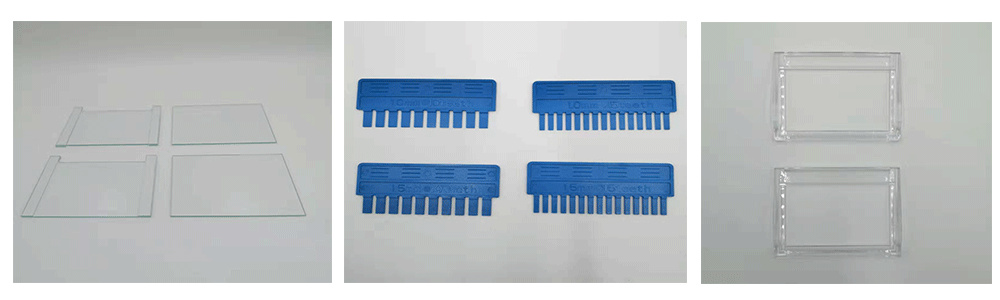

详情页-2

DYY-6C is a power supply designed for electrophoresis to create the electrical current to power DNA/RNA separations, PAGE electrophoresis and transferring to membrane. DYY-6C supports an output of 400V, 400mA, and 240W. Its LCD can show the voltage, current, power and timing time at the same time. It can work in the constant state of voltage, or in the constant state of electric current, and converted automatically according to the pre-assigned parameters for different needs.

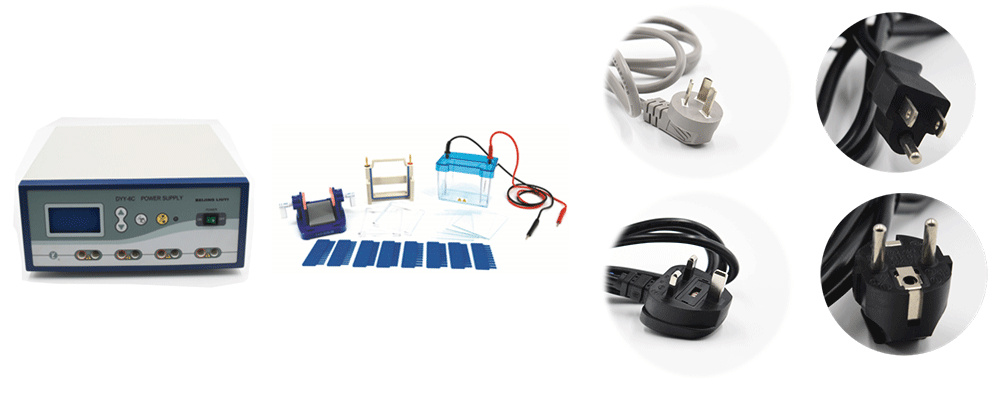

详情页-3

Application

The DYCZ-24DN with the power supply DYY-6C is an electrophoresis system for SDS-PAGE or Sodium Dodecyl Sulphate-Polyacrylamide Gel Electrophoresis for separation of proteins and it is widely applied in forensics, genetics, biotechnology and molecular biology areas. The researchers summary the following applications of SDS-PAGE:
1.It is used to measure the molecular weight of the molecules.
2.It is used to estimate the size of the protein.
3.Used in peptide mapping
4.It is used to compare the polypeptide composition of different structures.
5.It is used to estimate the purity of the proteins.
6.It is used in Western Blotting.
7.It is used in HIV test to separate the HIV proteins.
8.Analyzing the size and number of polypeptide subunits.

Feature

The DYCZ-24DN is made of high quality transparent materials, with delicate appearance, which is widely accepted by our customers. It has following features:
• Made of high quality transparent polycarbonate, exquisite and durable, easy for observation;
• With a gel casting in original position, able to cast and run the gel at the same place, simple and convenient to make gels, and save your precious time;
• Special wedge frame design can fix gel room firmly;
• Molded buffer tank equipped pure platinum electrodes;
• Easy and convenient to add samples;
• Able to run one gel or two gels at the same time;
• Save buffer solution;
• Special design of the tank avoid buffer and gel leakage;
• Removable electrodes, easy to maintain and clean;
• Auto-switch-off when the lid is opened;

The DYY-6C as our hot sale power supply has stable voltage and current. The followings are its unique features:
• Micro-computer processor intelligent control;
• Able to adjust parameters in real time under the working condition;
• Large-screen LCD displays voltage, current, power and timing time at the same time.
• Voltage, current and power closed-loop control, realizing adjustment during operation.
• With recovery function.
• After reaching the set time, it has the function of maintaining small current.
• Perfect protection and early warning function.
• With memory storage function.
• One machine with multiple slots, four parallel outputs.
