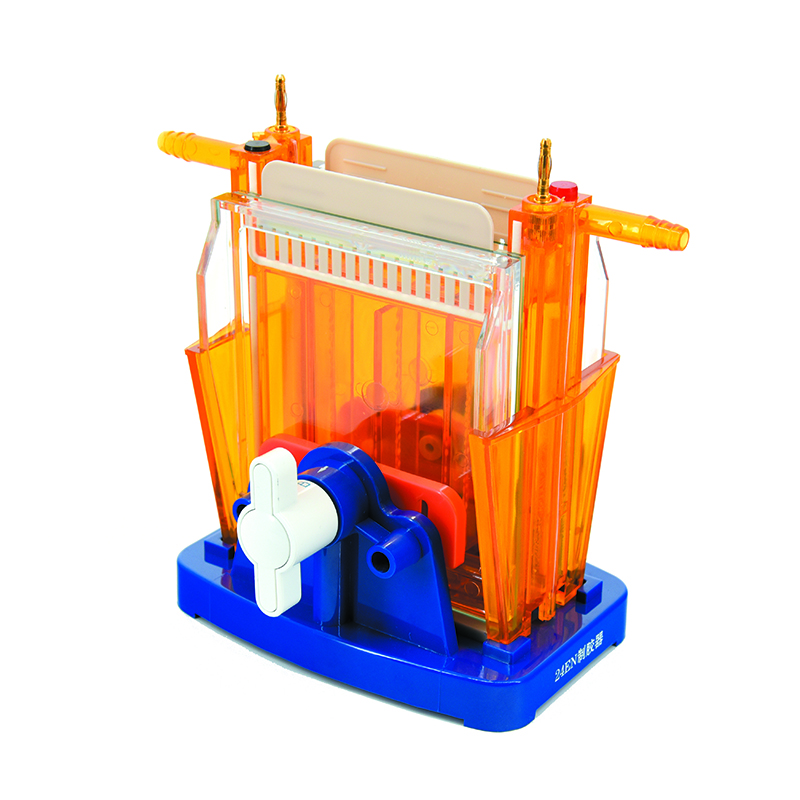

Modular Dual Vertical System DYCZ – 24EN
Specification
| Dimension (LxWxH) |
210×120×220mm |
|
Gel Size (LxW) |
130×100mm |
|
Comb |
12 wells and 16 wells |
|
Comb Thickness |
1.0mm and 1.5mm |
|
Number of Samples |
24-32 |
|
Buffer Volume |
1200 ml |
|
Weight |
2.0kg |
Application
For SDS-PAGE, Native PAGE electrophoresis and two-dimensional gel electrophoresis.
Description
DYCZ – 24EN is a delicate, simple and easy to use system. It is manufactured from high poly carbonate with platinum electrodes. Its seamless and injection-molded transparent base prevents leakage and breakage. This system is very safe for the users. Its power source will be switched off when user opens the lid. The special lid design avoids making mistakes. DYCZ – 24EN electrophoresis tank has a cooling system (built-in heat exchanger), which can reduce the heat during the running to insure the optimal resolution with minimal thermal band distortion. Built-in heat exchanger (molded) can be connected with refrigerated circulating baths (low temperature circulator) in order to keep the temperature constant.
Feature
• The tank body is made by high quality polycarbonate that is transparent ,exquisite and durable;

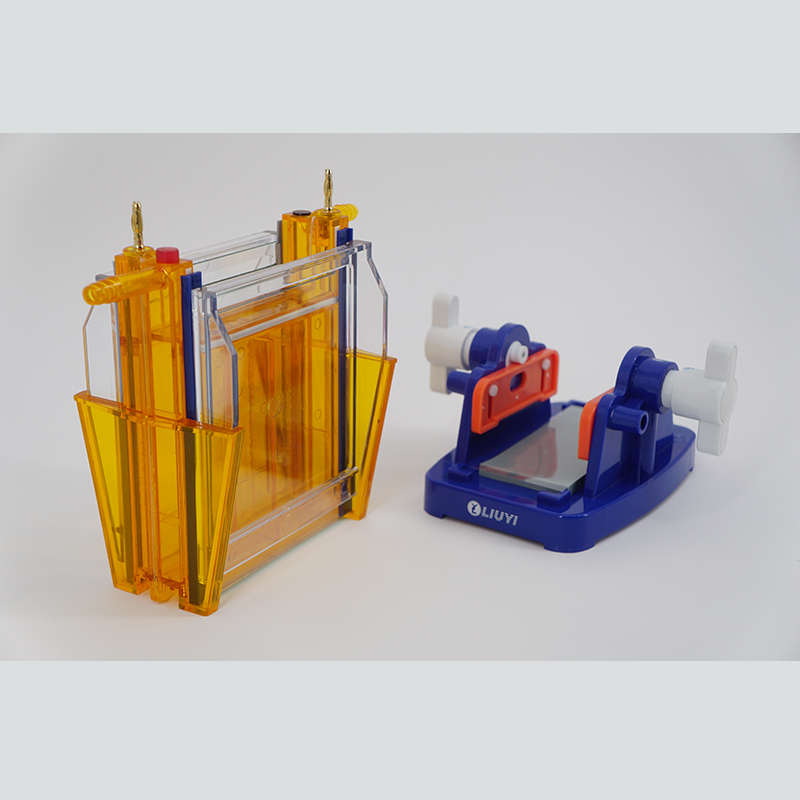

• With a gel casting in original position, able to cast and run the gel at the same place, simple and convenient to make gels;
• Special wedge frame design can fix gel room firmly;
• Molded buffer tank equipped pure platinum electrodes;
• Able to run one gel or two gels at the same time;
• Save buffer solution;
• Its seamless and injection-molded transparent base prevents leakage and breakage;
• Auto-switch-off when the lid is opened;
• Built-in heat exchanger can eliminate the heat produced during the running.
