DNA Sequencing Electrophoresis Cell DYCZ-20G

Short Description:

DYCZ-20G is used for DNA sequencing analysis and DNA fingerprinting analysis, differential display and SSCP research. It is researched and designed by our company, which is the only DNA sequence analysis electrophoresis cell with double plates in the market; with high repeatable experiments, it greatly improves the work efficiency. It is a classic choice for marking experiment.


Product Detail

Product Tags

DYCZ-20G-2

Specification

Dimension (LxWxH)

450×160×280 mm

Gel Size (LxW)

316×190mm

316×130mm

Size of Gel Casting Base

340×190mm(Standard)

340×130mm(Option)

Comb Thickness

1.0mm

Comb

102 well

Number of Samples

204

Buffer Volume

1200 ml

Description

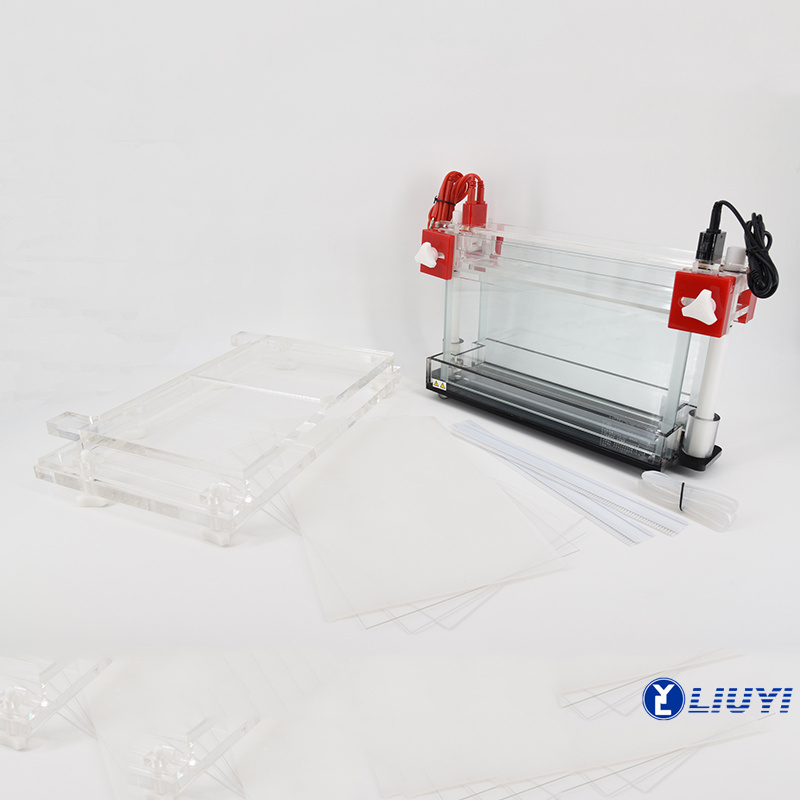

The DYCZ-20G consists Main tank plate, Lower tank, Combs, “U”-shape fixing device, “T”-shape spacer block, Glass plate, Gel bottle, Sealing clip, Silica rubber strip, Sealing strip, Lead.The main tank plate is transparent, spliced, exquisite, durable, no chemical pollution; chemical-resistant, pressure-resistant.“U”-shape fixing device for gel room facilitate rapid assembly, the “U”-shape fixing device clamps the sides over the gel room, and each “U”-shape fixing device exerts an even pressure over the entire length of the gel room, resulting in a tight seal when you tighten the screws. This prevents damage to the gel room (glass plate) or leakage that can result from uneven pressure. Its safety lid design prevents high voltage buffer shock, if you want to open the lid, you need to take away the cathode lead first. With high repeatable experiments, it greatly improves the work efficiency.

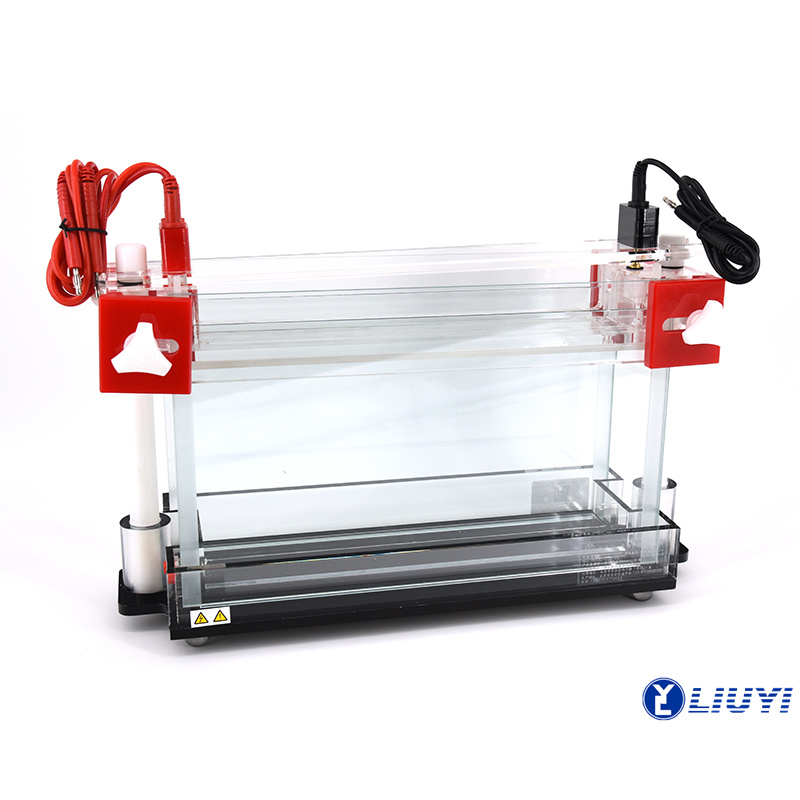

DYCZ-20G-3
DYCZ-20G-4

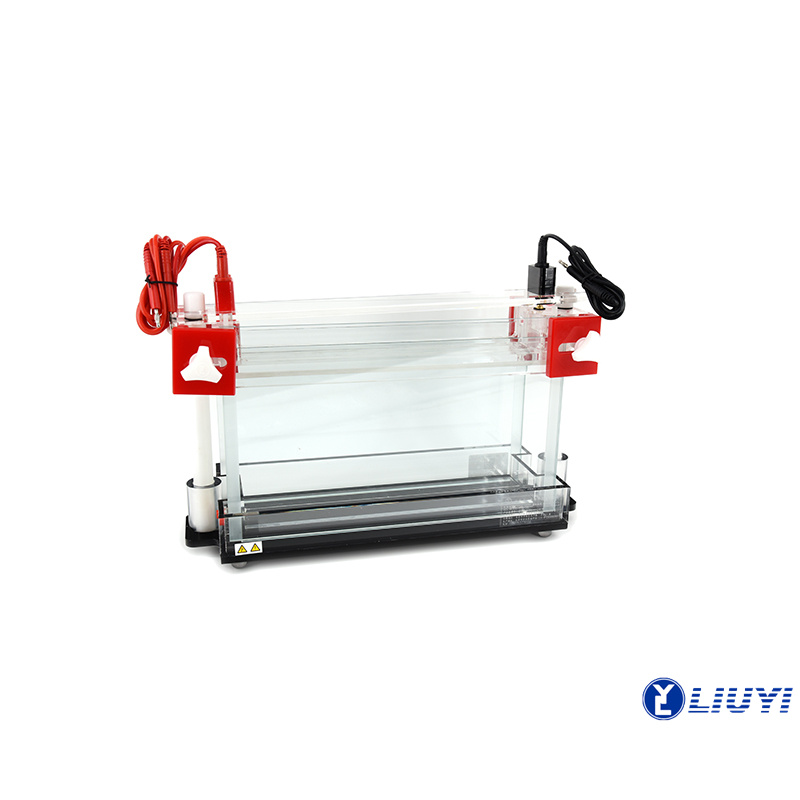

DYCZ-20G-1

Feature

• The number of samples can ran up to 204 pieces, can use multi-channel pipettes to add samples;

• Adjustable main structure, can do variety experiments;

• Multi-casting gel to make sure gels have strong consistency;

• High quality PMMA, glittering and translucent;

• Save buffer solution;

• 190mm gel casting base can make 2 gels at the same time; 130mm gel casting base can make 6 gels at the same time;

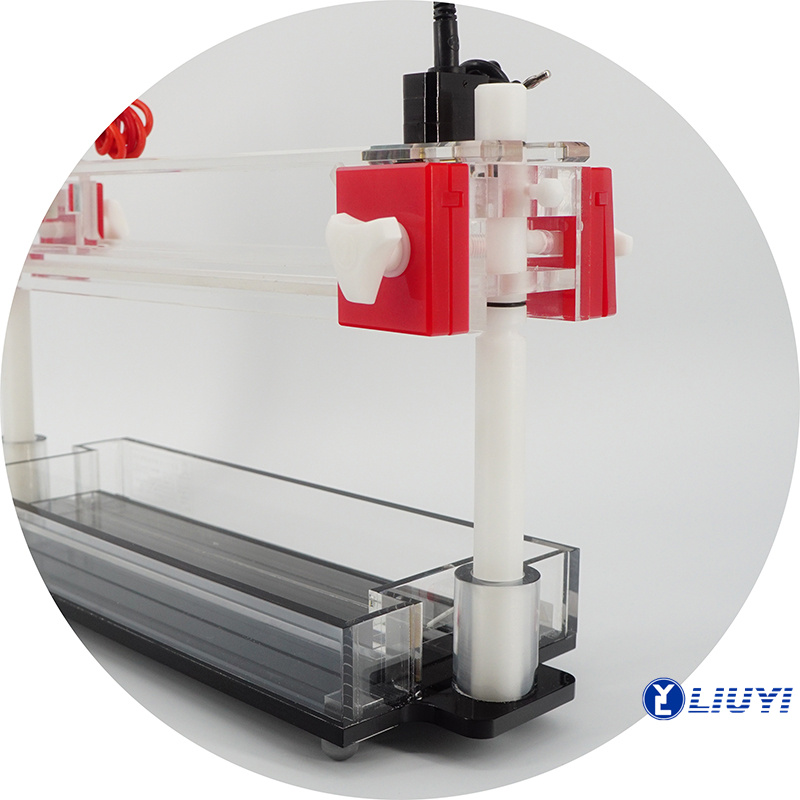

DYCZ-20G-7

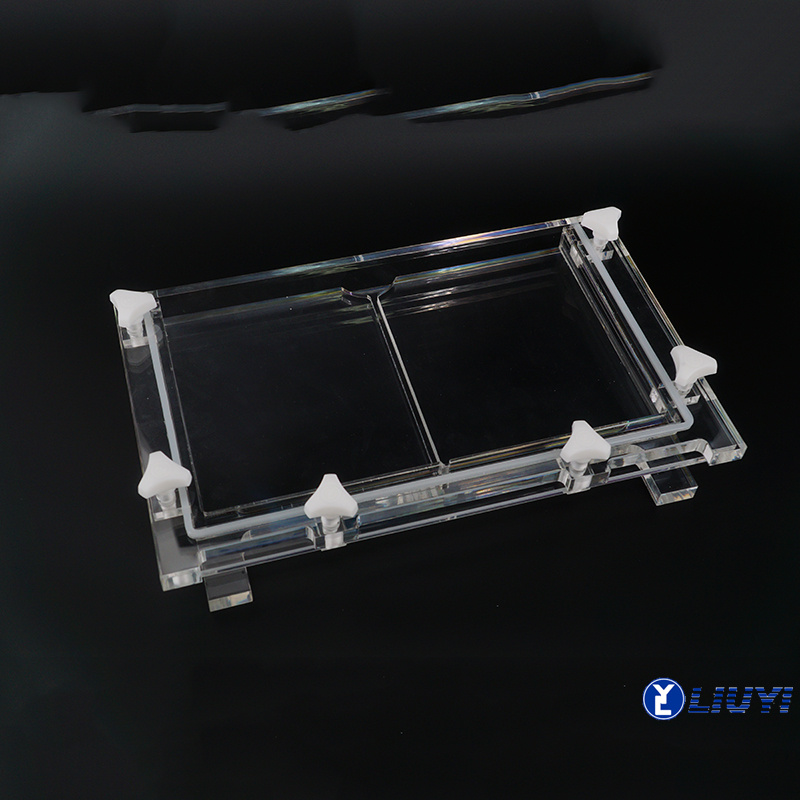

DYCZ-20G-5

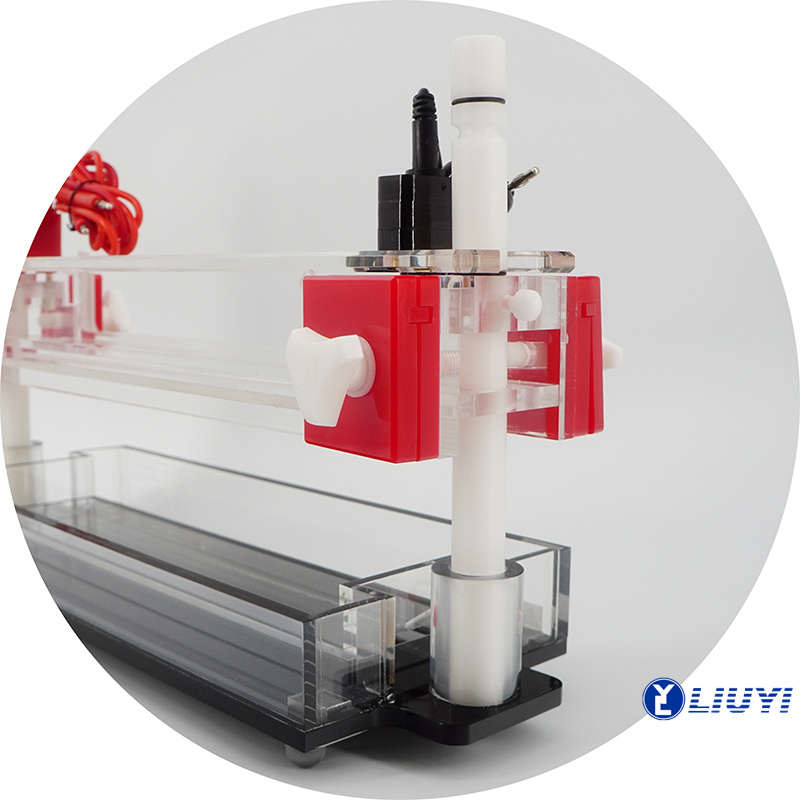

DYCZ-20G-6
