DNA Sequencing Electrophoresis Cell DYCZ-20A

Short Description:

DYCZ-20A is a vertical electrophoresis cell used for DNA sequencing and DNA fingerprinting analysis, differential display etc. Its distinctive design for heat dissipation maintains uniform temperature and avoids smile patterns. The permanence of the DYCZ-20A is very stable, you can get a neat and clear electrophoresis bands easily.


  • Gel Size (LxW): 580×170mm
  • Comb: 32 wells (shark teeth) 26 wells (Great Wall teeth)
  • Comb Thickness: 0.4mm
  • Number of Samples: 52-64
  • Buffer Volume: 850ml
  • Product Detail

    Product Tags

    Video

    Specification

    Dimension (LxWxH)

    240×210×655mm

    Gel Size (LxW)

    580×170mm

    Comb

    32 wells (shark teeth)

    26 wells (Great Wall teeth)

    Comb Thickness

    0.4mm

    Number of Samples

    52-64

    Buffer Volume

    850ml

    Weight

    10.5kg

    Application

    DYCZ-20A electrophoresis cell is used for DNA sequencing and DNA fingerprinting analysis, differential display, AFLP or SSCP research in biochemical analysis and research.

    csdvf7

    Description

    DYCZ-20A is a tall vertical electrophoresis, and the height is around 66cm, which can cast gel size 580×170mm. It can cast big gel, and the buffer volume is only about 850ml.

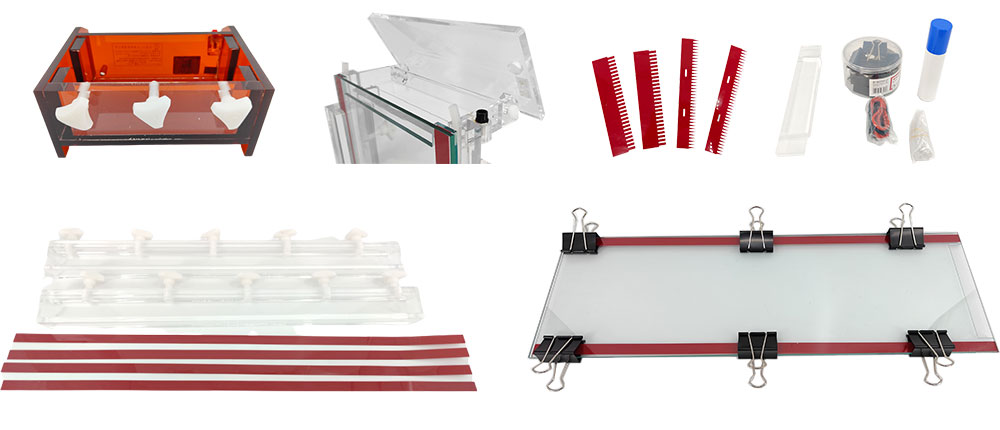

    DYCZ-20A electrophoresis cell consists the main tank plate, “U”-shape fixing device, “T”-shape spacer block and lower tank. The accessories are: glass plates, combs, silica rubber strip, spacer, latex hose and leads etc. The “U”-shape fixing device for gel room facilitate rapid assembly, the “U”-shape fixing device clamps the sides over the gel room, and each “U”-shape fixing device exerts an even pressure over the entire length of the gel room, resulting in a tight seal when you tighten the screws. This prevents damage to the gel room (glass plate) or leakage that can result from uneven pressure.

    csdvf6

    Feature

    • Easy to cast the gel;
    • Transparent, no obstructions to visibility;
    • Unique design of heat dissipation, keep temperature balance;
    • Simple and easy installation of the tank;
    • Easy to make gel with the gel filling device;
    • Neat and clear electrophoresis bands can be obtained.
