Nucleic Acid Horizontal Electrophoresis Cell DYCP-32B
Specification
| Dimension (LxWxH) |
365×165×130mm |
|
Gel Size (LxW) |
200×130mm 150×130mm |
|
Comb |
14 wells, 26 wells and 18 wells |
|
Comb Thickness |
1.0mm and 1.5mm |
|
Number of Samples |
4-208 |
|
Buffer Volume |
800 ml |
|
Weight |
1.5kg |
Description

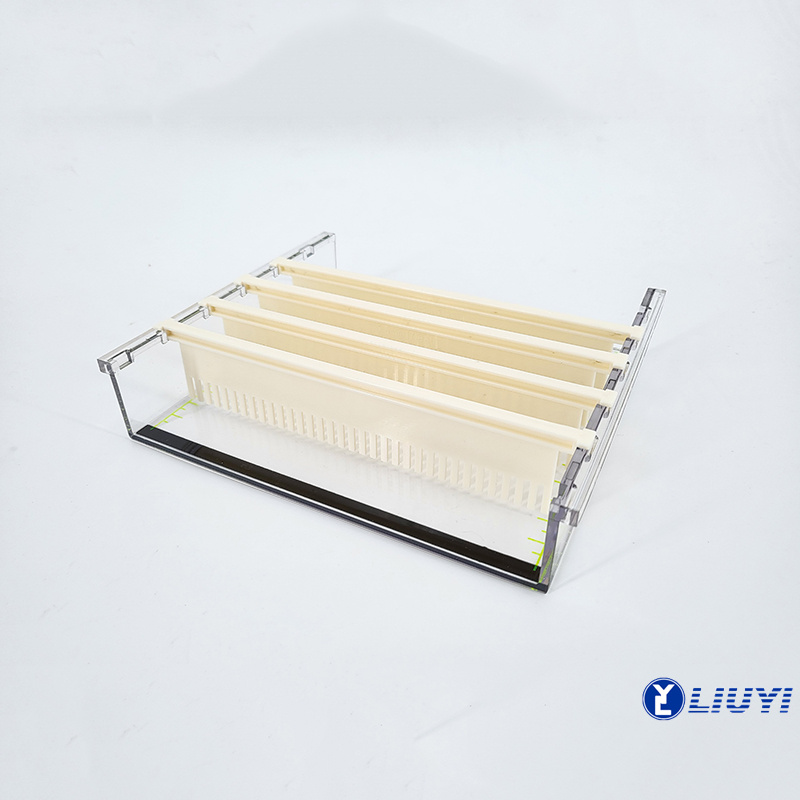

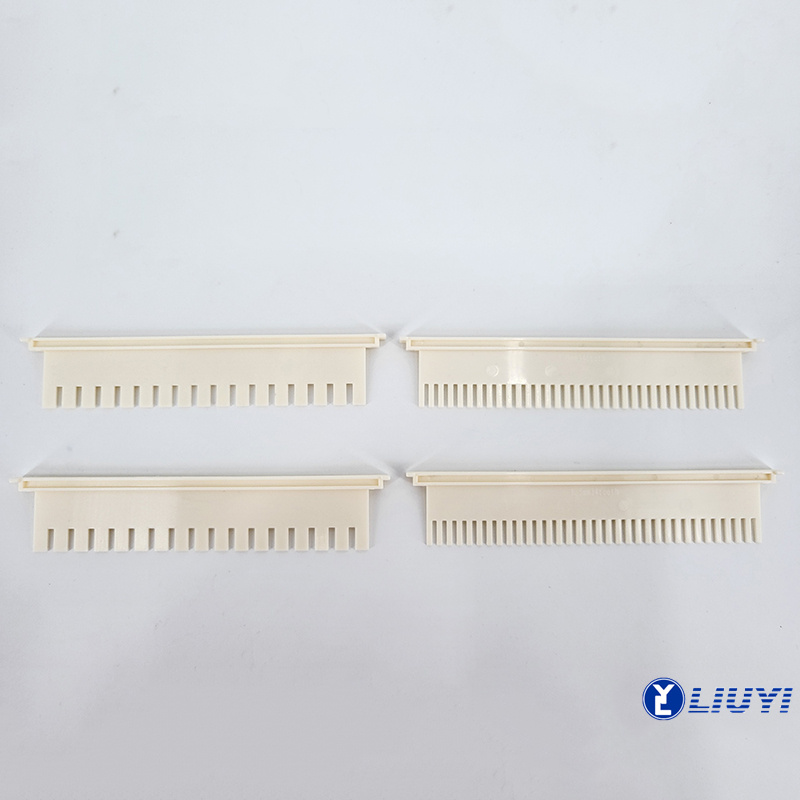

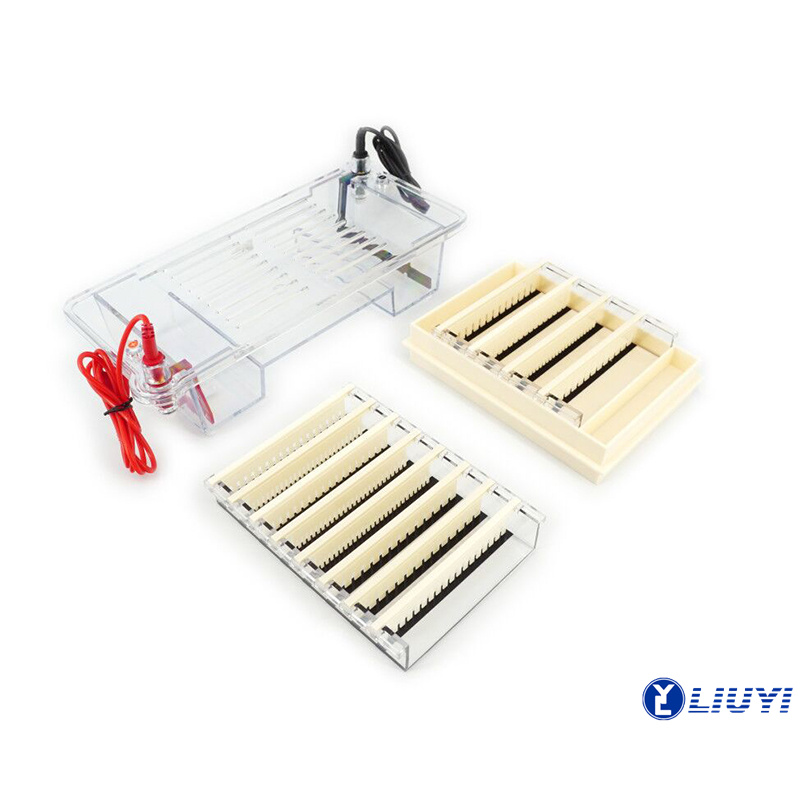

The DYCP-32B electrophoresis cell consists the following parts: main tank body (buffer tank), lid, lead, gel tray, gel-casting device and combs. The lids and the main tank bodies (buffer tanks) are transparent, molded, exquisite, durable, good seal, no chemical pollution; chemical-resistant, pressure-resistant. Each model of the electrophoresis cell has its own gel casting device, and electrodes are made by pure platinum (the purity quotient of the noble metal ≥ 99.95%) which have the features of corrosion resistance of electroanalysis and withstand high temperature, the function of electric conduction is very good. The removable electrodes is easy to maintain and clean. Its black and fluorescent band on the gel tray makes it convenient to add the samples and observe the gel. The system equips removable electrodes that is easy to maintain and clean.Its black and fluorescent band on the gel tray makes it convenient to add the samples and observe the gel.
Application
Apply to identify, separate, prepare DNA, and measure the molecular weight.
Feature
• With high quality polycarbonate tank body, it is exquisite and durable;
• Transparent top lid, easy for observation;
• When move the lid, the power is off;
• Suitable for 12-channel Pipette use;
• Removable electrodes, easy to maintain and clean;
• High temperature resistant, not easy deformation;
• Save buffer solution;
•Special gel casting base for easy and fast gel casting operation;
• Can run two pieces of gel at the same time;
