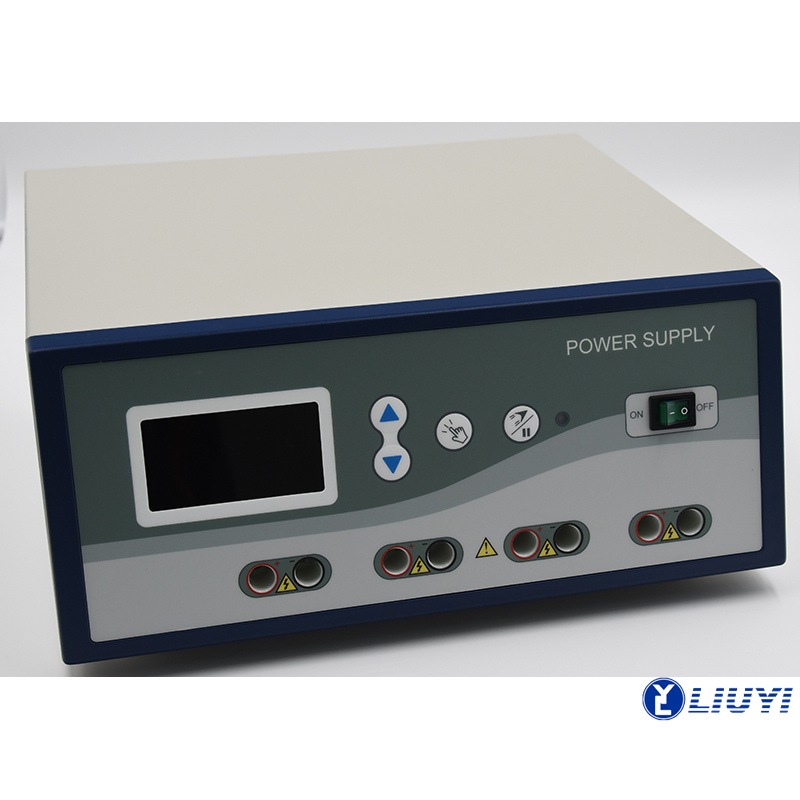

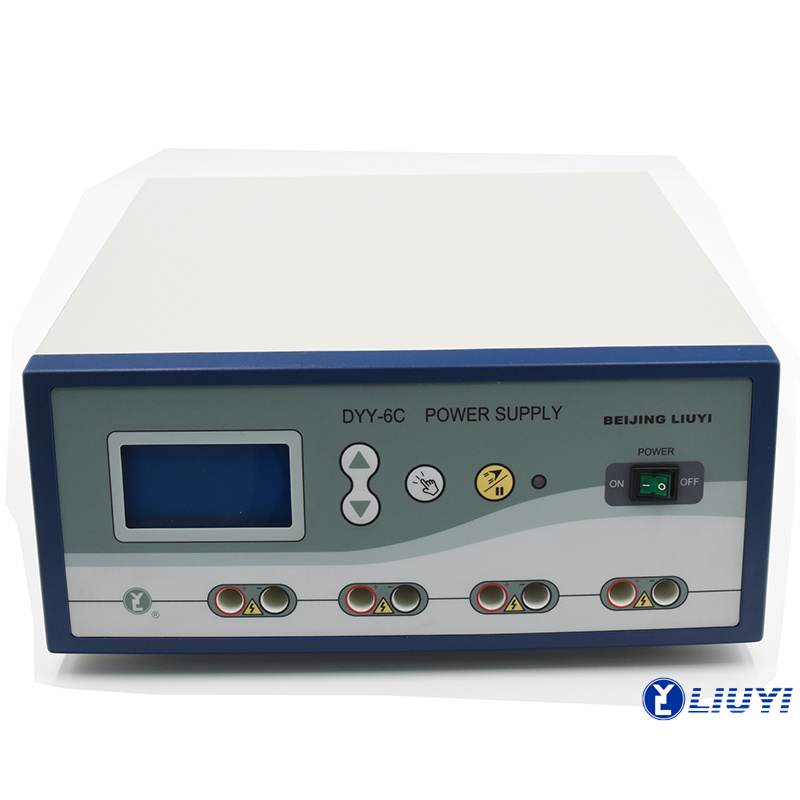

Electrophoresis Power Supply DYY-6C

Short Description:

The DYY-6C power supply supports an output of 400V, 400mA, 240W, which is our common product used by our customers. It is designed to apply in DNA, RNA, Protein electrophoresis. We adopt the microcomputer processor as the control center of DYY-6C. It has the following advantages: small,, light, high output-power and stable functions. Its LCD can show you the voltage, current, power and timing time at the same time. It can work in the constant state of voltage, or in the constant state of electric current, and converted automatically according to the pre-assigned parameters for different needs.


  • Output Voltage: 6-600V
  • Output Current: 4-400mA
  • Output Power: 240W
  • Output Terminal: 4 pairs in parallel

    • Product Detail

    Product Tags

    Electrophoresis-Power-Supply-DYY-6C-2

    Specification

    Dimension (LxWxH)

    235 x 295x 95mm

    Output Voltage

    6-600V

    Output Current

    4-400mA

    Output Power

    240W

    Output Terminal

    4 pairs in parallel

    Weight

    2.5kg
    Electrophoresis-Power-Supply-DYY-6C-3
    Electrophoresis-Power-Supply-DYY-6C-4
    Electrophoresis-Power-Supply-DYY-6C-5
    Electrophoresis-Power-Supply-DYY-6C-6
    Electrophoresis-Power-Supply-DYY-6C-7
    Electrophoresis-Power-Supply-DYY-6C-8
    Electrophoresis-Power-Supply-DYY-6C-1

    Application

    For DNA, RNA, Protein electrophoresis (the seed purity testing recommended model);

    Feature

    • Micro-computer processor intelligent control;

    • Able to adjust parameters in real time under the working condition;

    • Large-screen LCD displays voltage, current, power and timing time at the same time.

    • Voltage, current and power closed-loop control, realizing adjustment during operation.

    • With recovery function.

    • After reaching the set time, it has the function of maintaining small current.

    • Perfect protection and early warning functions.

    • With memory storage function.

    • One machine with multiple slots, four parallel outputs.
