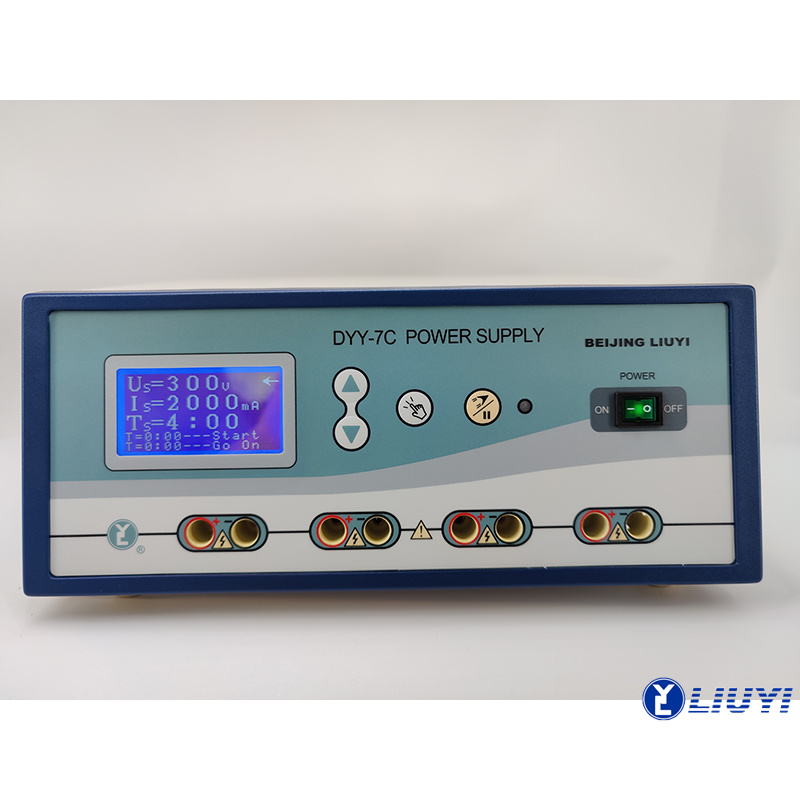

Electrophoresis Power Supply DYY-7C

Short Description:

The DYY-7C power supply is designed to provide constant voltage, current, or power for electrophoresis cells. It is recommended for high –current applications. It has an output of 300V,2000mA and 300W. The DYY-7C is the perfect choice for trans-blotting electrophoresis.

Output Voltage: 2-300V

Output Current: 5-2000mA

Output Power: 300W

Output Terminal: 4 pairs in parallel

Send email to us

Product Detail

Product Tags

Specification

Dimension (LxWxH)	315 x 290 x 128mm
Output Voltage	2-300V
Output Current	5-2000mA
Output Power	300W
Output Terminal	4 pairs in parallel
Weight	5.0kg

Application

For trans-blotting electrophoresis and suitable for electrophoresis with multi-tanks.

Feature

• The Max output current is 2000mA;

• Micro-computer processor intelligent control;

• Able to adjust parameters in real time under the working condition;

• LCD displays voltage, electric current, timing time;

•With automatic memory function, able to store the operation parameters；

• Able to work with constant voltage, constant current, constant power and automatically switch program according to the pre-set parameters for different needs;

• Protection and warning function for unloaded, overload, sudden-load change.
