Nucleic Acid Horizontal Electrophoresis Cell DYCP-31DN

Short Description:

DYCP-31DN is used for identifying, separating, preparing DNA, and measuring the molecular weight. It is made of high quality polycarbonate that is exquisite and durable. It is easy to observe gel through the transparent tank.Its power source will be switched off when user opens the lid.This special lid design avoids making mistakes. The system equips removable electrodes that is easy to maintain and clean.Its black and fluorescent band on the gel tray makes it convenient to add the samples and observe the gel. With the different sizes of the gel tray, it can make four different sizes of gel.


Product Detail

Product Tags

7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-5

Specification

Dimension (LxWxH)

310×150×120mm

Gel Size (LxW)

60×60mm

60×120mm

120×60mm

120×120mm

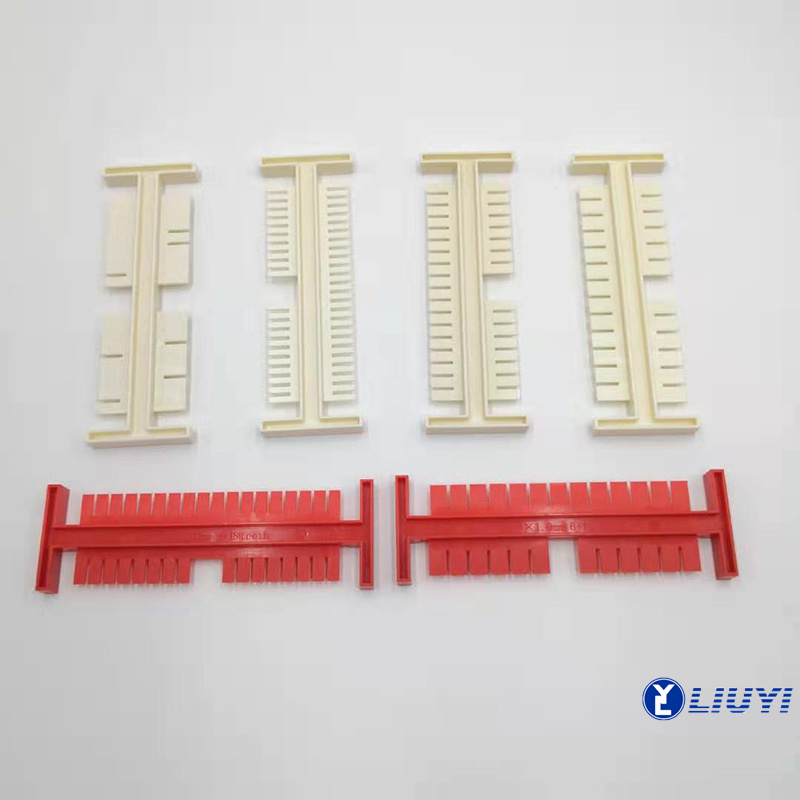

Comb

2+3 wells (2.0mm)

6+13 wells, 8+18 wells

11+25 wells

Comb Thickness

1.0mm, 1.5mm and 2.0mm

Number of Samples

2-100

Buffer Volume

650 ml

Weight

1.0kg

7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-6
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-8
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-9
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-10
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-14
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-16

Description

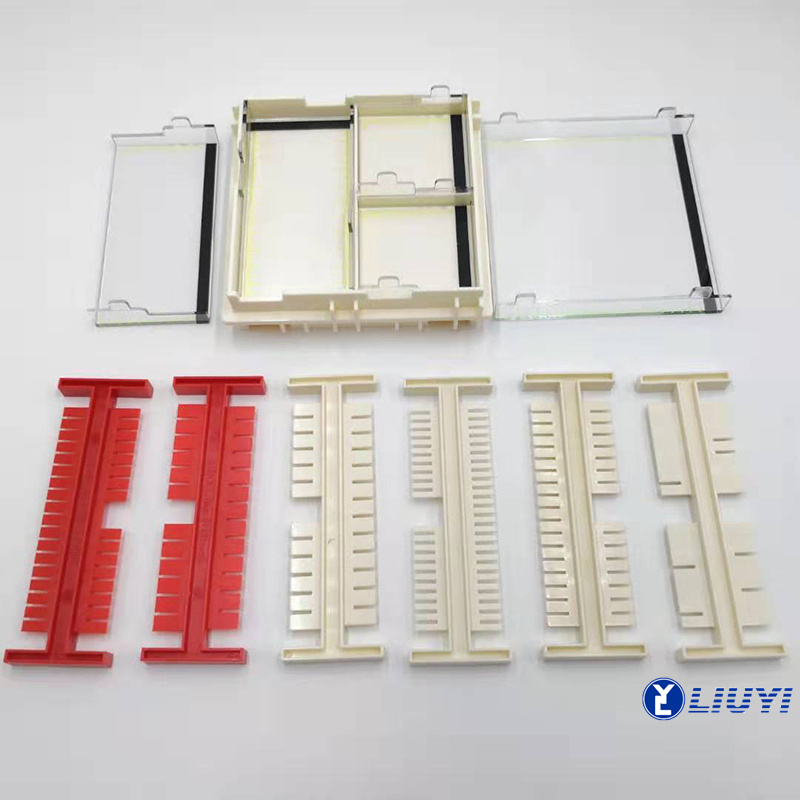

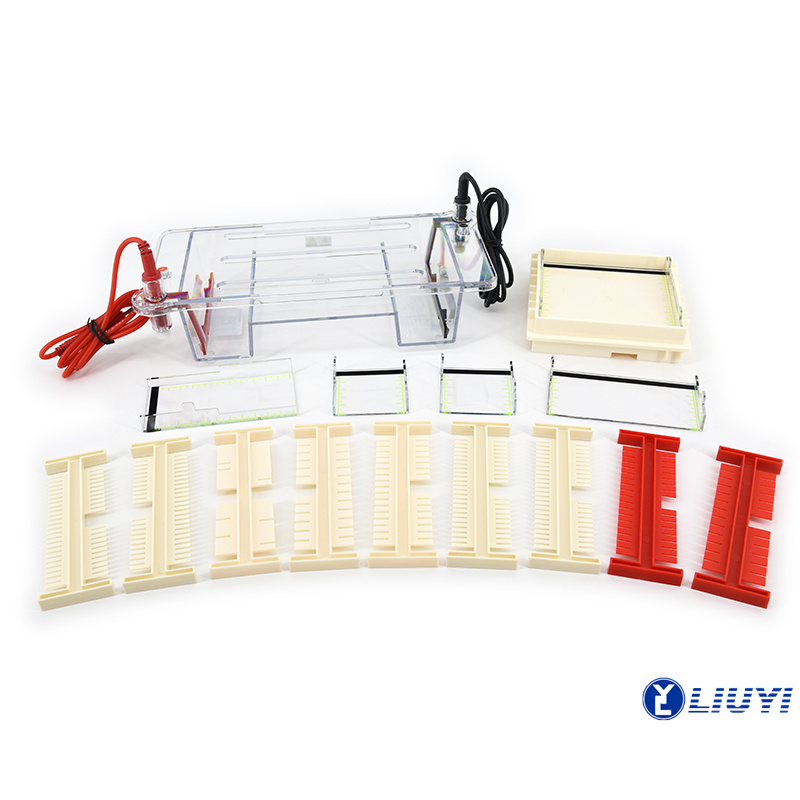

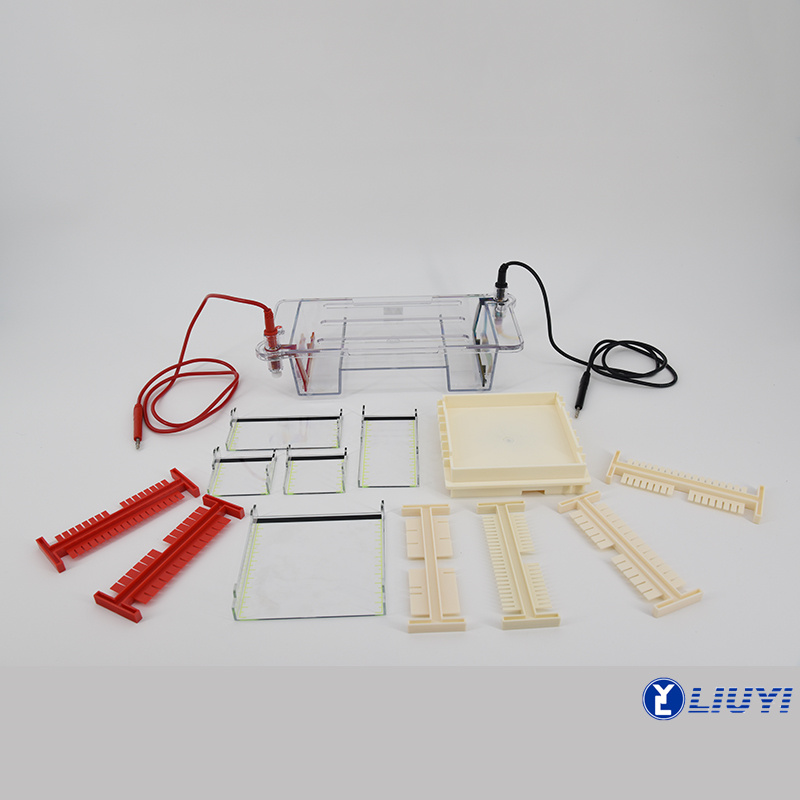

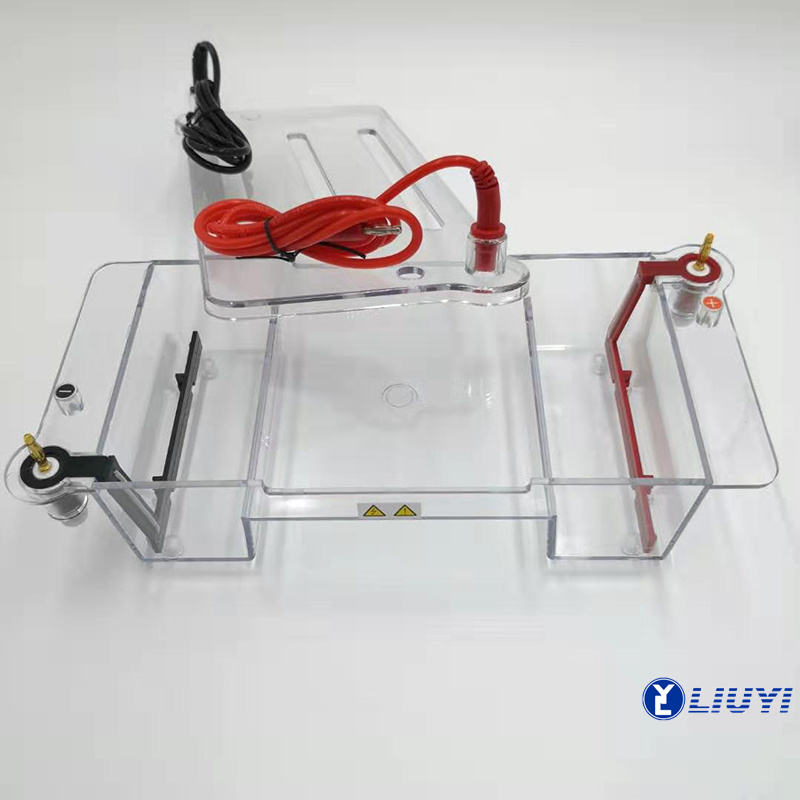

The DYCP-31DN electrophoresis cell consists the following parts: main tank body (buffer tank), lid, lead, gel tray, gel-casting device and combs. The lids and the main tank bodies (buffer tanks) are transparent, molded, exquisite, durable, good seal, no chemical pollution;chemical-resistant, pressure-resistant. Each model of the electrophoresis cell has its own gel casting device. Electrodes are made by pure platinum (the purity quotient of the noble metal ≥ 99.95%) which have the features of corrosion resistance of electroanalysis and withstand high temperature, the function of electric conduction is very good. The removable electrodes is easy to maintain and clean.Its black and fluorescent band on the gel tray makes it convenient to add the samples and observe the gel. With the different sizes of the gel tray, it can make four different sizes of gel. DYCP-31DN has different wells of comb available for your choice.

Application

Apply to identify, separate, prepare DNA, and measure its molecular weight.

Feature

• The lids and the main tank bodies (buffer tanks) are transparent, molded, exquisite, durable, good seal, no chemical pollution; chemical-resistant, pressure-resistant;

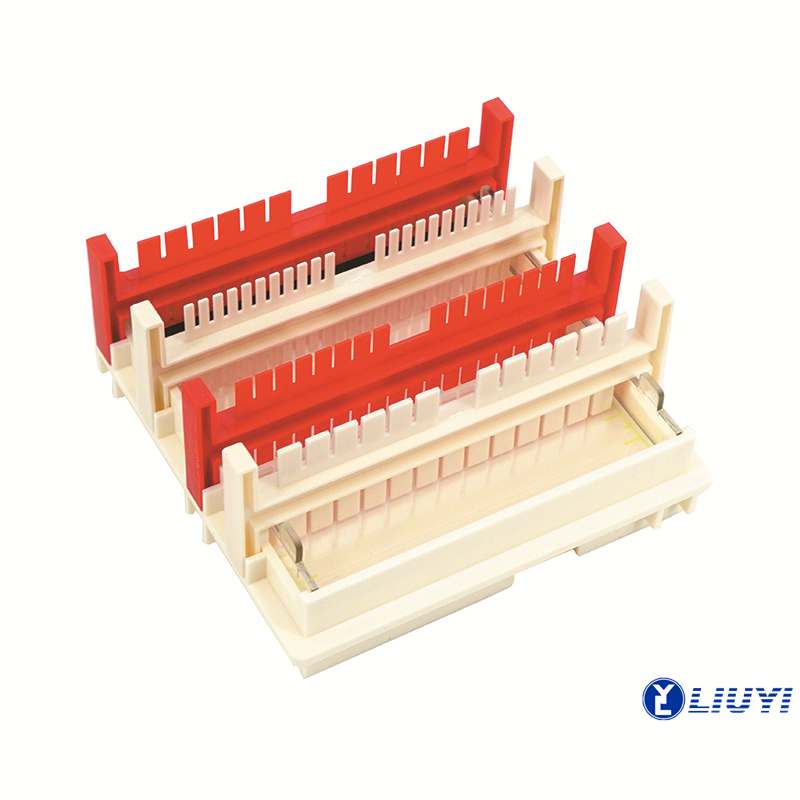

• Each model of the electrophoresis cell has its own gel casting device;

• Electrodes are made by pure platinum(the purity quotient of the noble metal ≥99.95%) which have the features of corrosion resistance of electroanalysis and withstand high temperature, the function of electric conduction is very good;

• Auto-switch-off when the lid is opened;

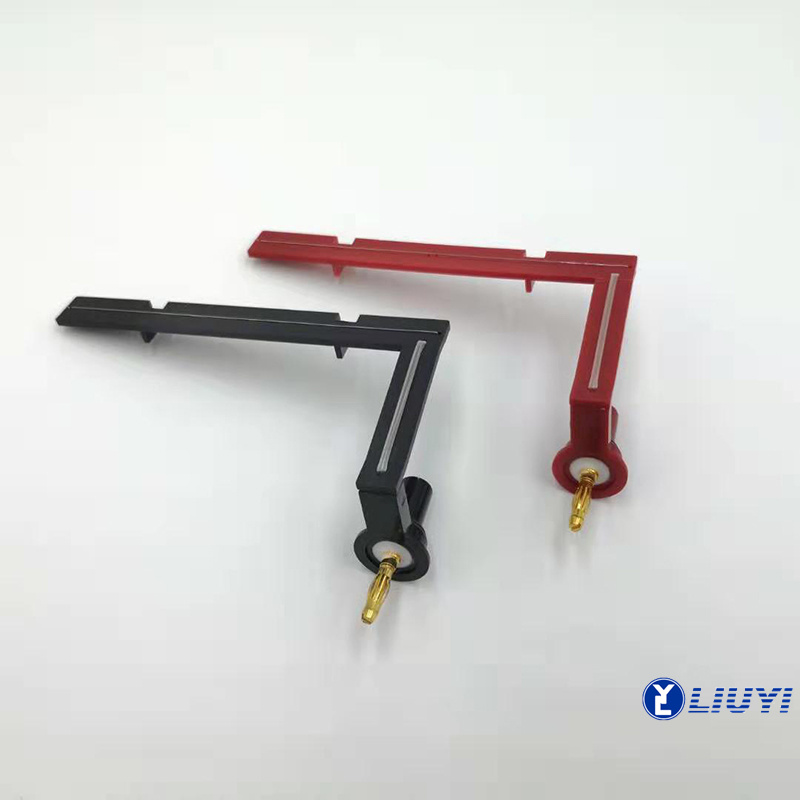

• Removable electrodes;

• Different wells of comb are available;

• It has black band on the gel tray;

• Can run two pieces of gel at the same time;

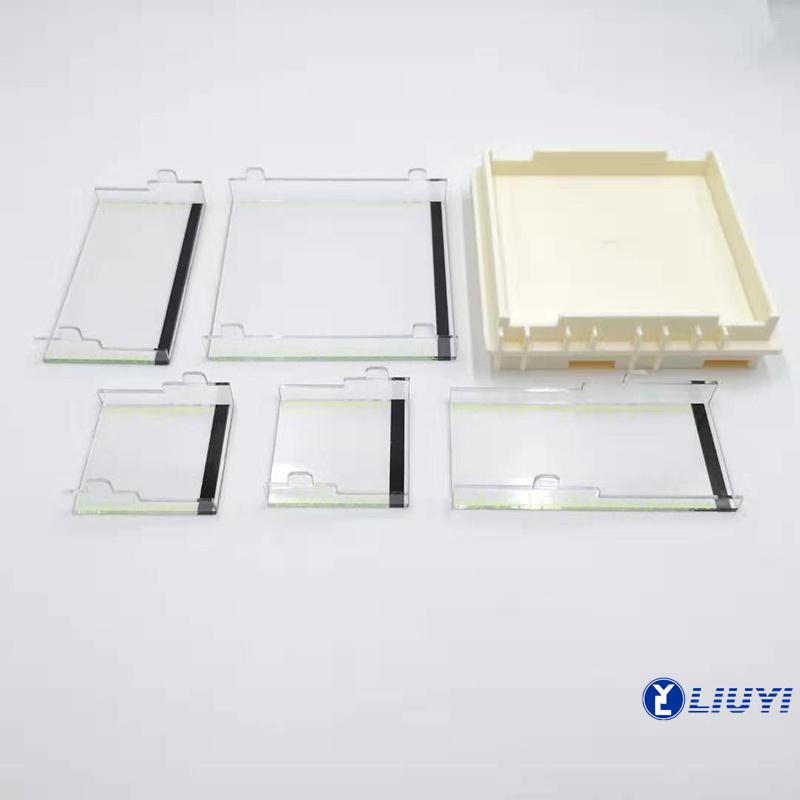

• One gel casting base can cast different sizes of gel.

7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-7
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-10
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-11
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-12
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-3
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-14
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-18
7.Nucleic-Acid-Horizontal-Electrophoresis-Cell-DYCP-31DN-13
