What Is an Electrophoresis Chamber for PCR Detection?
An electrophoresis chamber for PCR detection is a specialized laboratory instrument designed to separate, visualize, and analyze PCR (Polymerase Chain Reaction) amplification products based on their molecular size and charge. After PCR amplification, the resulting DNA fragments must be verified for correct size, purity, and yield โ and agarose gel electrophoresis within a dedicated chamber is the gold standard method for achieving this verification.
The chamber hosts a gel matrix โ typically 1โ2% agarose โ through which an electric current drives negatively charged DNA molecules from the negative electrode toward the positive electrode. Smaller fragments migrate faster, creating distinct bands that can be stained (commonly with ethidium bromide or safer alternatives like GelRed) and visualized under UV or blue LED transilluminators. This process is indispensable in molecular biology, genomics, clinical diagnostics, forensic science, and food safety testing.
Why electrophoresis chambers are critical for PCR workflows: PCR amplification alone cannot confirm specificity. An electrophoresis chamber provides real-time visual confirmation of amplicon size, multiplexing outcomes, primer dimer contamination detection, and quantitative estimation of PCR product yield โ all essential quality control steps in any molecular biology protocol.
Core Components of a High-Performance Electrophoresis Chamber

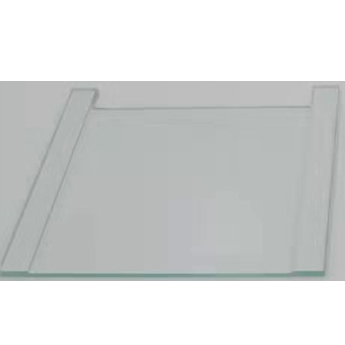

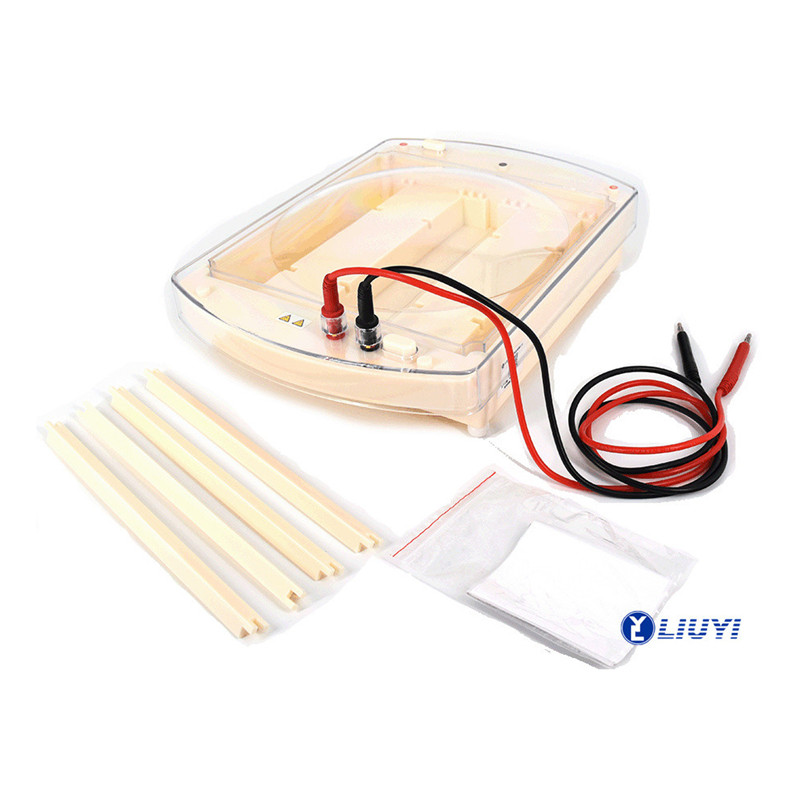

A modern electrophoresis chamber for PCR detection comprises several precision-engineered components: a UV-resistant cast acrylic or polycarbonate tank, platinum or stainless steel electrodes for uniform current distribution, gel casting trays in multiple sizes, comb systems accommodating variable well numbers, and safety interlock lids to prevent accidental exposure to live electrodes. High-end systems also integrate temperature control mechanisms to prevent band broadening caused by Joule heating during high-voltage runs.

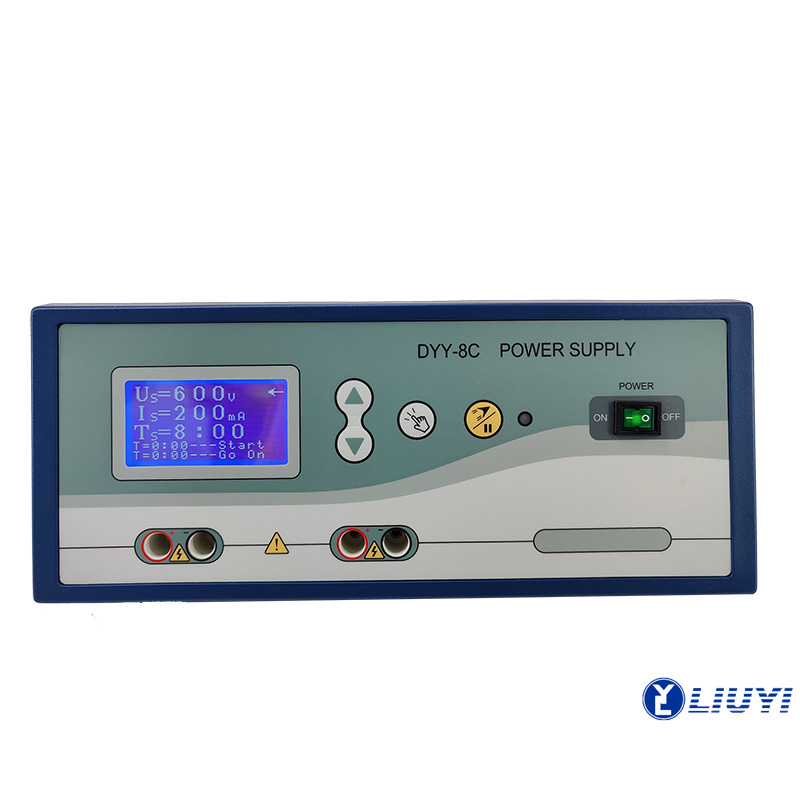

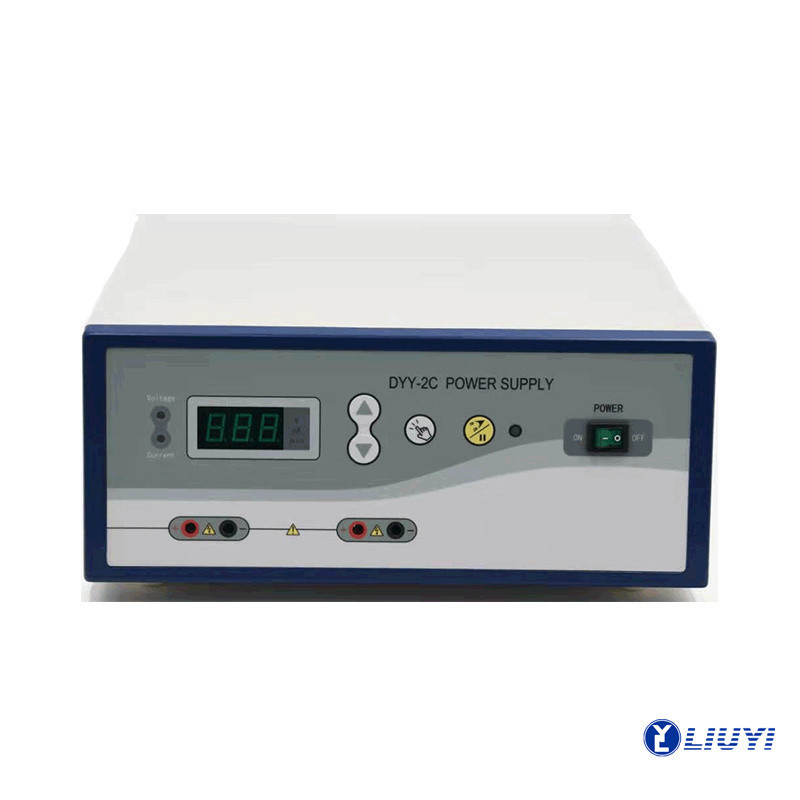

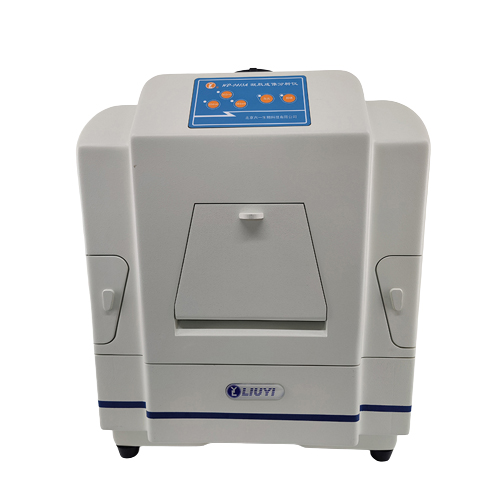

Paired with a reliable electrophoresis power supply delivering stable voltage (typically 50โ300V DC) and a sensitive gel imaging and analysis system, the complete electrophoresis workflow offers laboratories a fully integrated, reproducible, and quantitative PCR product validation pipeline.
Deep-Dive Application Scenarios
Electrophoresis chambers for PCR detection serve a remarkably broad spectrum of industries and scientific disciplines. Here are the most critical application areas driving global demand.
Clinical Molecular Diagnostics
Hospitals and diagnostic laboratories rely on PCR electrophoresis to confirm pathogen identification, detect genetic mutations, and validate NIPT (non-invasive prenatal testing) results. Rapid, high-throughput electrophoresis chambers enable same-day reporting for critical clinical decisions, including infectious disease management and oncology biomarker screening.
Infectious Disease Surveillance
During outbreaks such as COVID-19, influenza, and viral hemorrhagic fevers, PCR is the definitive detection tool. Electrophoresis chambers verify multiplex PCR panel specificity, confirm absence of inhibition, and validate new diagnostic assay development โ making them essential infrastructure in public health laboratories and biosafety level facilities worldwide.
Agricultural GMO & Food Safety Testing
Regulatory agencies in the EU, USA, China, and Japan mandate GMO content testing in food products. PCR-based electrophoresis chambers allow rapid identification of transgenic sequences in crops, processed foods, and animal feeds โ supporting compliance with food labeling regulations and international trade standards.
Forensic DNA Profiling
Law enforcement and forensic laboratories use STR (Short Tandem Repeat) PCR analysis combined with capillary electrophoresis or slab gel systems for human identification, paternity testing, and evidence analysis. Electrophoresis chambers provide the backbone for initial PCR product QC before downstream capillary analysis, ensuring optimal sample quality and minimizing failed runs.
Pharmaceutical QC & Biopharmaceutical R&D
Biopharmaceutical companies deploy PCR electrophoresis chambers for sterility testing, mycoplasma detection in cell culture batches, identity testing of biological materials, and validation of gene therapy vectors. Regulatory guidance (ICH Q5A, Q5D) requires documented molecular QC, making reliable electrophoresis chambers a GMP-compliance necessity.
Academic & Industrial Genomics Research
Genome-wide association studies, CRISPR-Cas9 edit verification, metagenomics, and RNA sequencing library QC all require electrophoresis-based PCR product confirmation. University core facilities and industrial genomics companies depend on scalable, reliable chambers capable of processing hundreds of samples per day without compromising band resolution.
Commercial & Industrial Market Trends
The global market for electrophoresis equipment โ with PCR detection chambers as a key segment โ is undergoing rapid transformation driven by technological convergence, regulatory intensification, and expanding life science research investment worldwide.
Miniaturization & Microfluidics Integration
Next-generation electrophoresis chambers are shrinking in footprint while increasing throughput. Integrated microfluidic chip-based gel electrophoresis systems now allow analysis of PCR products in under 3 minutes with sub-nanogram sensitivity, enabling point-of-care diagnostics in resource-limited settings and field environments.
Automation & Digital Laboratory Integration
Modern electrophoresis platforms increasingly connect to LIMS (Laboratory Information Management Systems), robotic sample handlers, and cloud-based data analysis platforms. Automated gel loading, image capture, and band quantification reduce human error and accelerate time-to-result โ critical factors for high-throughput clinical and industrial PCR testing environments.
Sustainability & Safer Chemistries
The industry is transitioning away from carcinogenic ethidium bromide toward environmentally safer DNA stains such as SYBR Safe, GelRed, and GelGreen. Chambers designed with blue LED illumination sources enable these safer stains to be used effectively, supporting laboratory biosafety programs and green chemistry initiatives in both academic and industrial settings.
Emerging Market Expansion
Southeast Asia, Africa, Latin America, and the Middle East represent the fastest-growing markets for electrophoresis equipment, driven by expanding healthcare infrastructure, increasing university research budgets, and national genomics initiatives. Chinese manufacturers like Beijing Liuyi Biotechnology are capturing significant share in these markets through cost-competitive, high-quality product offerings backed by global certification standards.
Technical Innovation in Electrophoresis Chamber Design for PCR
Key engineering advancement: Modern electrophoresis chambers feature buffer recirculation systems that actively redistribute ions and maintain uniform pH throughout the run, preventing band smearing and increasing resolution for closely sized PCR products โ particularly important for multiplex PCR assays analyzing amplicons within narrow size ranges (e.g., 100โ500 bp).
Gel Resolution Optimization for PCR Amplicons
PCR products typically range from 50 bp to 5,000 bp. Optimal resolution requires careful matching of agarose concentration (0.8%โ3.0%), buffer system (TAE vs TBE vs SB), voltage gradient, and run time. High-performance electrophoresis chambers with precise electrode geometry and uniform electric field distribution ensure consistent band migration across the entire gel width, eliminating edge effects that distort comparative analysis across multiple samples.
Multi-Channel High-Throughput Capabilities
Industrial-scale PCR testing โ such as in centralized COVID-19 testing centers, food safety inspection facilities, or high-throughput genomics companies โ demands chambers capable of running 96, 192, or even 384 samples simultaneously. Specialized multi-gel horizontal electrophoresis systems with dedicated power supplies featuring multiple independent circuit outputs meet these production-scale demands without compromising analytical quality.
Cold Room & Ambient Condition Performance
For sensitive applications such as PFGE (Pulsed-Field Gel Electrophoresis) of large genomic DNA or SSCP analysis of PCR products for mutation detection, temperature-controlled electrophoresis chambers with active cooling are essential. Maintaining 4ยฐCโ15ยฐC throughout extended runs (12โ24 hours) preserves band sharpness, prevents protein denaturation in native gels, and improves reproducibility across experimental replicates.
