In the fast‐paced world of molecular biology and lab medicine, there is always a new technology on the horizon. However, there are still classic techniques that cannot be replaced, providing confidence in the results and have proven to be cost-effective. Cellulose acetate electrophoresis (CAE) is indeed one such tried-and-tested method.
If you run a busy clinical laboratory or you need dependable consumables for your diagnostic research, knowing why cellulose acetate electrophoresis continues to be trusted will help you streamline your workflow.
What is Cellulose Acetate Electrophoresis?
Electrophoresis is, at its simplest, a lab process that lets you separate biomolecules (like DNA or proteins) by how big and electrically charged they are. In cellulose acetate electrophoresis a thin cellulose acetate membrane is used as the supporting medium.
Under the influence of an electric field, charged molecules such as proteins move through the membrane . Since the cellulose acetate background is homogenous and inert chemically, it produces very crisp and well defined bands with little background staining.
Basic Clinical Applications
Why do clinical paths consistently use this specific method?
Cellulose acetate membranes provide critical data for several primary diagnostic profiles:
Hemoglobin Variant Analysis: It is the primary tool for screening hemoglobinopathies, such as sickle cell trait and various thalassemias.
Serum Protein Electrophoresis (SPEP): Used to separate serum proteins into five distinct fractions: albumin, alpha-1, alpha-2, beta, and gamma globulins. This is crucial for detecting monoclonal gammopathies (like multiple myeloma).
Isoenzyme Separation: Helping labs differentiate alkaline phosphatase or creatine kinase isoenzymes to pinpoint specific tissue damage (e.g., cardiac vs. skeletal muscle).
The Distinct Advantages of Cellulose Acetate Membranes
While modern automated capillary systems exist, cellulose acetate strips and sheets continue to hold a massive market share globally for three distinct reasons:

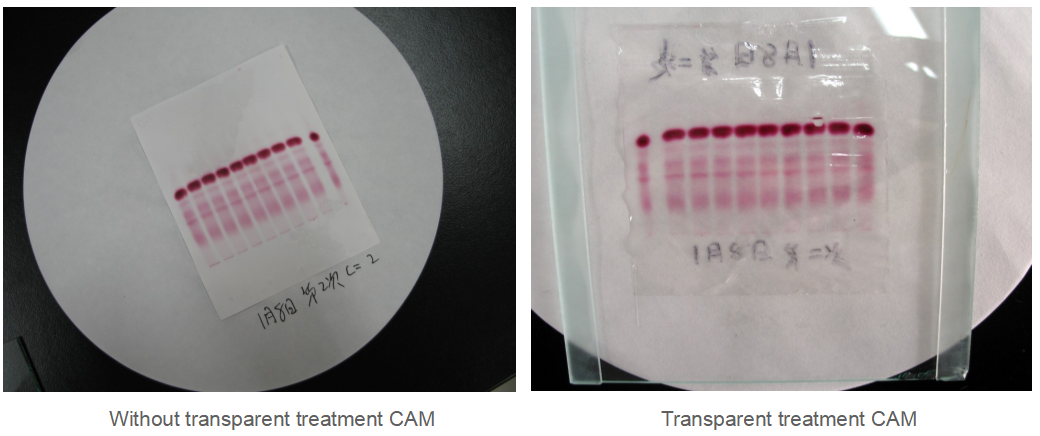

Transparency for Densitometry: Once the separation is complete and stained, the membrane can be chemically cleared (rendered completely transparent). This allows automated densitometers to read the bands with absolute optical clarity.
Low Protein Adsorption: Unlike traditional paper electrophoresis, cellulose acetate does not “trap” or adsorb proteins heavily on its surface. This results in sharper bands and eliminates trailing effects.
Economic Efficiency: The startup cost for a standard horizontal electrophoresis tank and power supply is a fraction of the cost of high-end capillary machinery, making it highly accessible for regional hospitals and developing laboratories.
Looking for cellulose acetate electrophoresis system and Cellulose Acetate Membranes ?

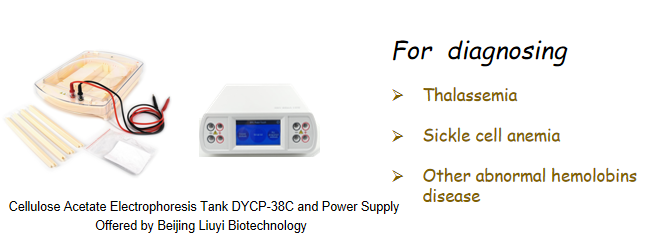

DYCP-38C cellulose acetate electrophoresis tank
We specialize in manufacturing cellulose acetate electrophoresis tanks and power supplies, as well as high-performance cellulose acetate membranes.
Our uniquely engineered electrophoresis tank features a three-platinum-electrode design, which effectively creates a dual-channel system within a single chamber. This innovative breakthrough doubles your sample throughput per run, cutting processing time in half without sacrificing workspace efficiency or requiring a second instrument. Coupled with premium-grade platinum wires that ensure exceptional conductivity and corrosion resistance, this tank delivers uniform field distribution for perfectly straight, distortion-free bands.
To complement our high-throughput hardware, we pair it with our next-generation digital power supply. Engineered for high precision, high stability, and unmatched reproducibility, it features an advanced triple-constant control mode (Constant Voltage, Constant Current, and Constant Power).
More details, welcome to talk with our technicians. We don’t just supply hardware and consumables; we provide complete diagnostic solutions. Whether you need technical specifications, customization options , or optimization tips for your specific electrophoresis protocols, our team of product experts and application scientists is ready to assist you.
