In molecular biology and proteomics research, Western Blotting (also known as Protein Immunoblotting) remains a gold standard technique for detecting specific proteins in a complex mixture. Achieving highly reproducible and reliable results requires a well-coordinated system of high-quality instruments.
Whether you are setting up a new laboratory or upgrading your current workflow, here is the comprehensive guide to the essential equipment required for a complete protein electrophoresis and transfer setup.
1. Core Electrophoresis & Transfer Systems
The heart of the Western Blotting workflow lies in separating proteins by molecular weight and then transferring them onto a solid membrane for detection.

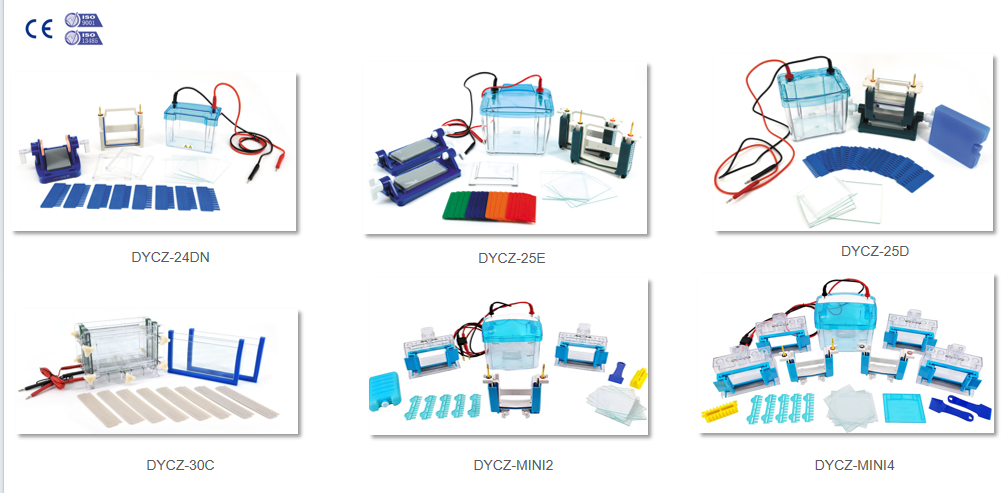

Vertical Electrophoresis Cell (Mini or Maxi Format)
Function: Used for running Polyacrylamide Gel Electrophoresis (PAGE) to separate proteins.
Components: Includes the electrophoresis tank, lid with power cables, gel casting frames, casting stands, glass plates (short plates and spacer plates), and sample combs (e.g., 10-well, 15-well).

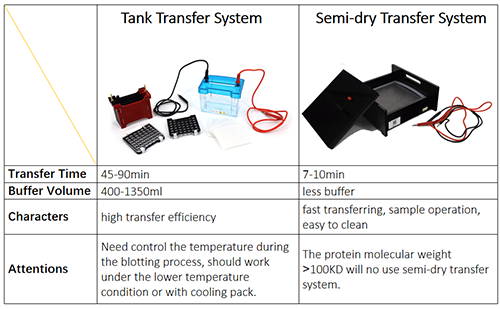

Protein Transfer Cell (Wet/Tank or Semi-Dry)
Function: Transfers the separated protein bands from the polyacrylamide gel onto a membrane.
Wet/Tank Transfer System: Ideal for high-efficiency transfer of a wide range of protein sizes. It includes transfer cassettes (sandwiches), foam pads, and a cooling unit (ice block/cooling core) to absorb heat generated by high currents.
Semi-Dry Transfer System: Best for rapid transfers with minimal buffer consumption.
Electrophoresis Power Supply (High-Current)
Function: Provides stable voltage, current, or power to drive the electrophoresis and transfer processes.
Key Requirement: Protein transfer (especially wet transfer) requires high current. A versatile power supply supporting up to 2000mA with programmable constant voltage/current modes is highly recommended.
2. Sample Preparation & Pre-treatment Equipment
Proper sample preparation ensures that proteins are fully denatured and ready for optimal separation.
Dry Bath Incubator / Heating Block (or Water Bath)
Function: Used to heat protein samples mixed with loading buffer (typically at 95℃-100℃ for 5-10 minutes) to denature the protein linear structures.
Microcentrifuge
Function: Used for pulling down condensates after heating and clearing cell lysates during initial sample preparation.
Precision Micro-Pipettes
Function: Critical for accurate reagent mixing and precise sample loading into the gel wells. Standard volume ranges required include 2.5μL,10μL, 200μL, and 1000μL.
3. Post-Transfer Processing & Detection
Once the proteins are bound to the membrane, the system requires agitation and visualization equipment.
Laboratory Shaker (Orbital or Rocking Shaker)
Function: Provides gentle, continuous agitation during membrane blocking, primary/secondary antibody incubation, and washing steps (TBST/PBST) to avoid background noise and uneven binding.
Chemiluminescence / Gel Imaging System (CCD Camera)
Function: Captures the final protein bands. Modern systems utilize high-sensitivity CCD cameras to detect chemiluminescent (ECL) or fluorescent signals, replacing traditional X-ray film documentation.
4. Essential Consumables & Reagents (System Intermediates)
To make the equipment operational, a standard laboratory must be stocked with these key components:
Transfer Membranes: PVDF (Polyvinylidene Difluoride, requires methanol activation, high mechanical strength) or NC (Nitrocellulose) membranes.
Thick Blotting Filter Papers: Used to build the “transfer sandwich.”
Gel Casting Reagents: Acrylamide/Bis-acrylamide solutions, Tris-HCl buffers (pH 6.8 & 8.8), SDS, Ammonium Persulfate (APS), and TEMED (Alternatively, Precast Gels can be used to bypass the casting equipment).
Pre-stained Protein Ladders/Markers: For visual tracking of electrophoresis progress and verifying transfer efficiency.

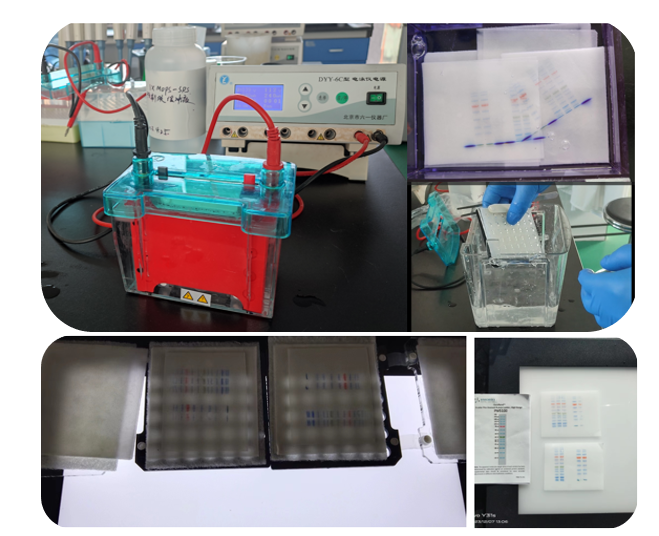

Wet trans-blot electrophoresis tank DYCZ-40D
Investing in a robust, high-performance vertical electrophoresis and transfer system is key to eliminating experimental artifacts and boosting laboratory productivity. By combining precise power regulation, reliable tank designs, and high-sensitivity imaging, researchers can achieve publication-ready Western Blot data with ease.
